Checking bonding

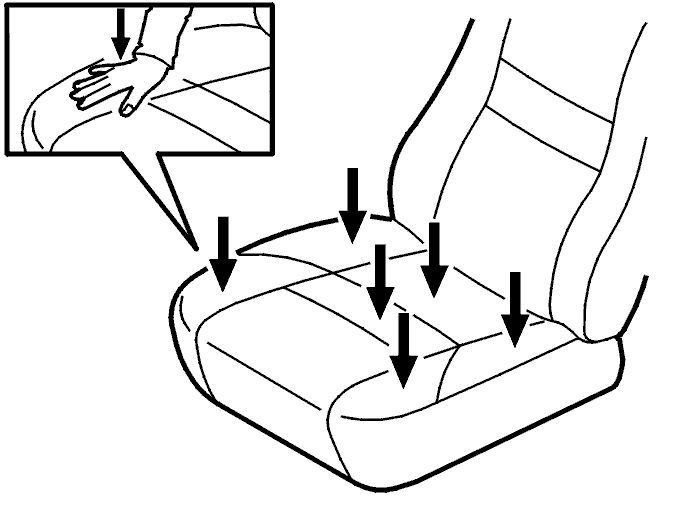

Fig 1: Testing Bonding

Courtesy of VOLVO CARS OF NORTH AMERICA.

This check can be performed either with the upholstery completely removed or with it partially in position.

Press at those points shown in the illustration. Check that the heater pad follows the compression of the cushion.

There must be no kinks or other defects in the heater pad when it is pressed.
