Removing the front seat

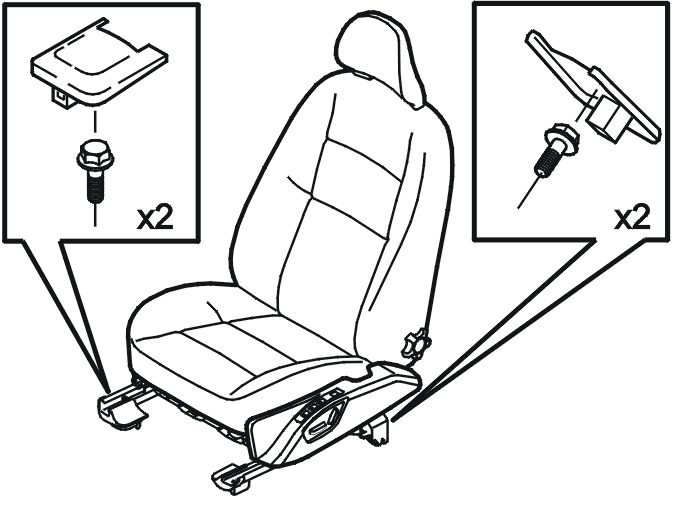

Fig 1: Front Seat Side Panel & Front Screws For Seat

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the 2 panels located above the front screws for the seat
• the 4 x M10 screws
• the front seat side panel. See: Side panel front seat, replacing
• the end mounting. See: End mounting, replacing
• the screw. Remove the connector under the seat.

Lift out the seat.
