Removing the heater pad control module

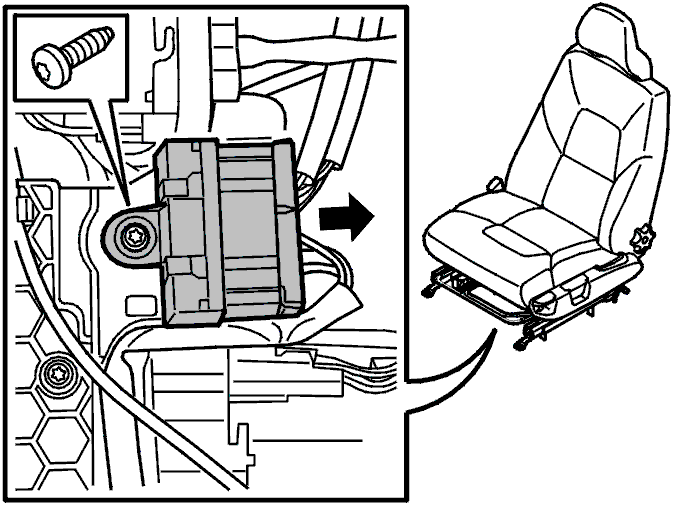

Fig 1: Heater Pad Control Module
GLL107283Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the seat from the car. See Removing power seats, tilting .

Remove one screw.

Disconnect the connector.

Remove the control module.
