seat frame

Remove the SIPS bag and seat heater connectors and wiring.

Release the wiring from the backrest.

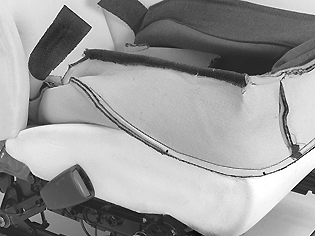

Fig 1: Removing Screws Per Side And Mounting

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

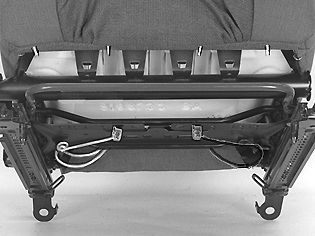

Fig 2: 5 Half Moon Clips From Each Side Of Underside Cushion

Courtesy of VOLVO CARS OF NORTH AMERICA.

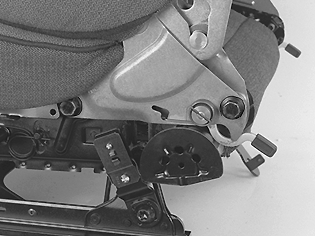

Fig 3: 4 Half Moon Clips From Underside Cushion

Courtesy of VOLVO CARS OF NORTH AMERICA.

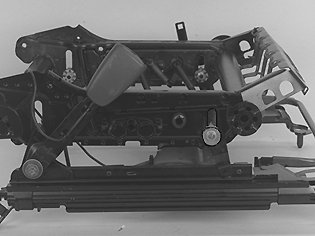

Fig 4: 3 Half Moon Clips From Rear Edge Of Underside

Courtesy of VOLVO CARS OF NORTH AMERICA.

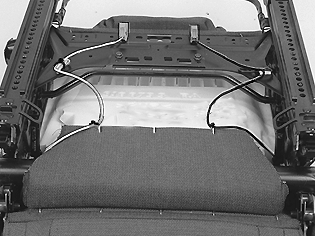

Fig 5: Identifying Half Moon Clips On Sides And At Rib

Courtesy of VOLVO CARS OF NORTH AMERICA.

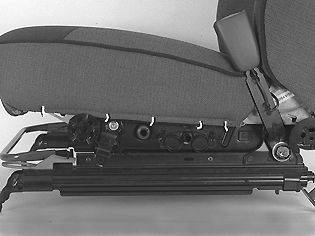

Fig 6: Folding Up Upholstery

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fold up the upholstery.

Remove:

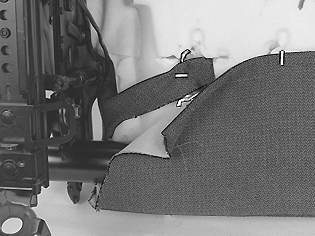

Fig 7: 3 Half Moon Clips From Rear Edge Of Underside

Courtesy of VOLVO CARS OF NORTH AMERICA.

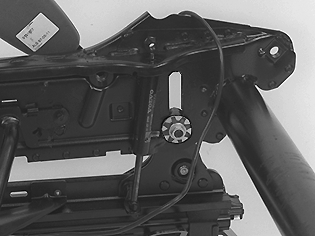

Fig 8: One Nut And Two Washers For Rear Height Adjuster Mounting

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 9: One Nut For Front Height Adjuster Mounting

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 10: 5 Half Moon Clips From Each Side Of Underside Cushion

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull straight out.

Angle the rail and the seat base so that they come apart.

Angle and turn the gas strut.

Replace the seat base.

Install:

In reverse order.

NOTE:

Do not tighten the cross stay screwed joint before the seat has been installed in the car.

Otherwise there is a risk that the seat will not be straight and the inside of the seat will be stressed.
