Replacing front seat side panel

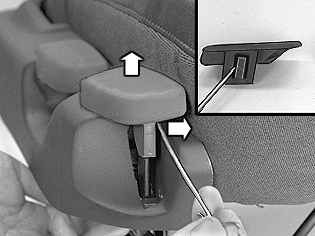

Fig 1: Inserting A Screwdriver At Rear Of Handle
GLL110037Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the height adjustment lever handle:

Insert a screwdriver at the rear of the handle.

Release the catches.

Pull upwards.

Install:

In reverse order.

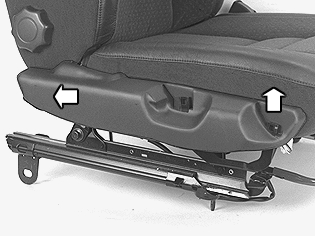

Fig 2: Pulling Front Edge Of Panel Upwards And Backwards
GLL110039Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull the front edge of the panel upwards.

Pull panel backwards.

Install:

In reverse order.
