Seat belt buckle end mounting

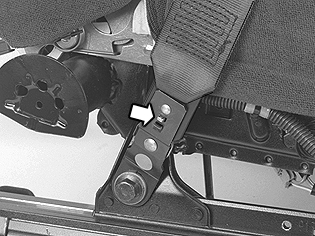

Fig 1: Seat Belt Buckle End Mounting
GLL110038Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove end mounting:

Insert a screwdriver on the inside of the mounting.

Press the catches inwards.

Pull upwards.

Install:

In reverse order.
