Cushion, replacing

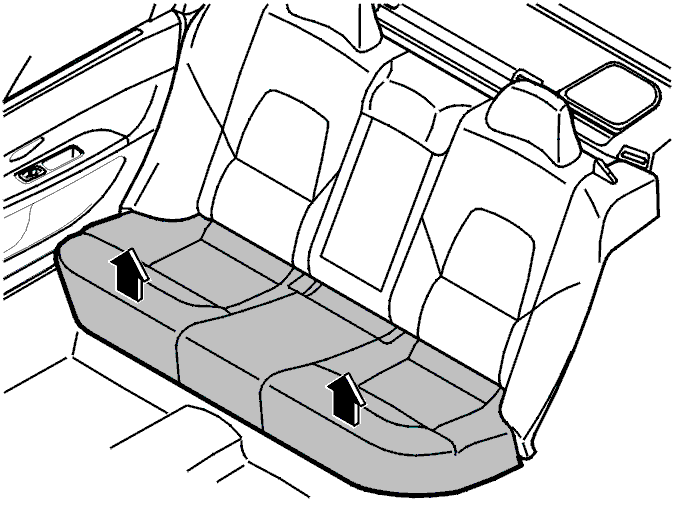

Fig 1: Lifting Front Edge Of Cushion

Courtesy of VOLVO CARS OF NORTH AMERICA.

First lift the bottom edge of the end of the cushion.

Lift the front edge of the cushion.

NOTE:

The cushion may be securely attached.

Lift out the cushion.

NOTE:

Check that the cushion clips are intact.

If not: Replace.
