Seat, Front (2001-2002): Backrest: Backrest

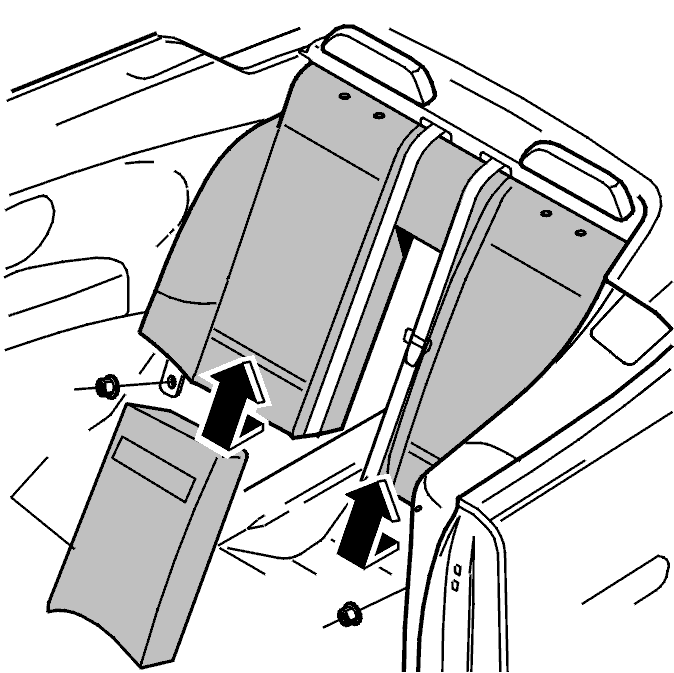

Fig 1: Identifying Backrest Cushion And Nuts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the armrest.
• the seat cushion, see Seat cushion .
• 2 nuts for the backrest cushion at the outer bottom edge of the cushion.
• the head restraints, see Head restraint .

Lift the backrest cushion out.

Route the belts around the backrest cushion and lift out the cushion.
