Replacing backrest adjustment knob

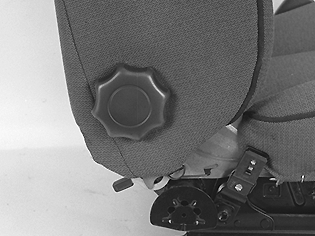

Fig 1: Backrest Adjustment Knob

GLL110059

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull the knob straight out.

Install:

Push the knob straight in.
