Removing the cable.

Fig 1: Removing Booster Cushion

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

Fig 2: Removing Plastic Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Detaching Upholstery From Plastic Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Detach the upholstery from the plastic panel.

Fig 4: Upholstery Taped Up To Backrest

Courtesy of VOLVO CARS OF NORTH AMERICA.

HINT: Tape up the upholstery to the backrest.

Fig 5: Seat Halves Self-Tapping Screw And Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Press the seat halves together.

Lock the seat halves using a self-tapping screw (1). Remove the screw (2).

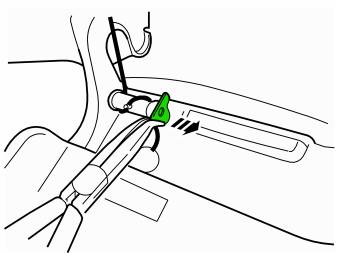

Fig 6: Prying Apart Mounting For Wire Reel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carefully pry apart the mounting for the wire reel.

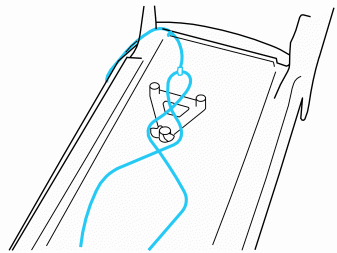

Fig 7: Routing Of Wire On Wire Reel

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Note the routing of the wire on the wire reel.

Remove:

Fig 8: Wire From Back Rest

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 9: Cushion

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 10: Spring And Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Note the marking of the spring.

Remove the spring and cable.
