Panel, trunk lid, replacing

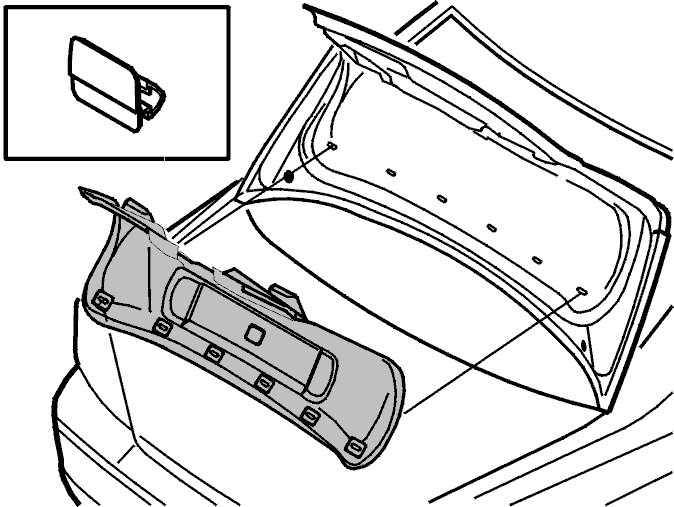

Fig 1: Trunk Lid Panel And Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

The panel is secured to the cover using clips.

Remove:

• the warning triangle
• the clips (press in the heads)
• the panel.

Install:

Position the panel.

Press the clip into place.

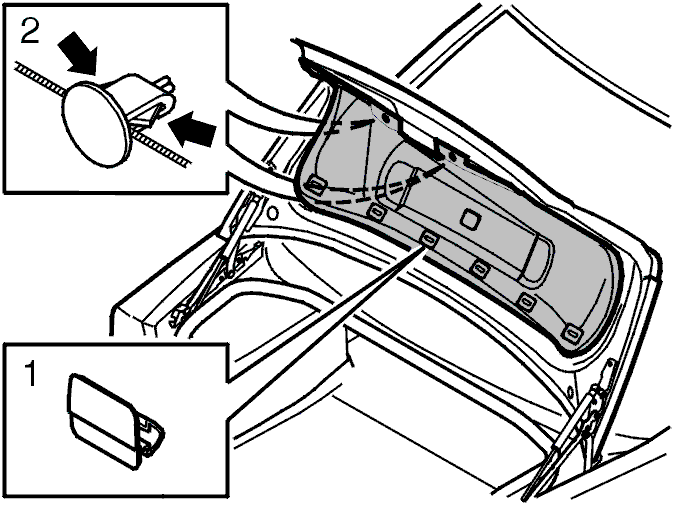

Fig 1: Trunk Lid Panel Cable Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the warning triangle
• the clips (1).

Insert a hand between the panel and the tailgate. Release the clips (2).

Remove the panel.

Install:

• the clips (2)
• the clips (1)
• the warning triangle.
