Installing the upholstery on fixed head restraints

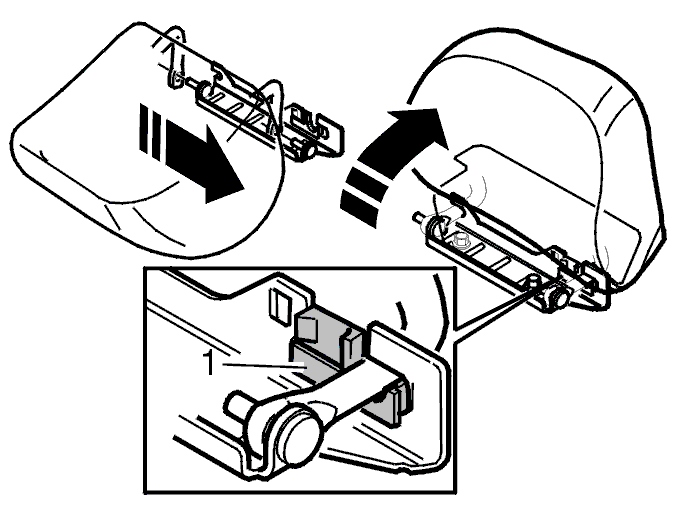

Fig 1: Installing Upholstery On Fixed Head Restraints
GLL105360Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the upholstery.

Install:

Guide the head restraint rails into the correct channels.

Check that the catch engages.

Fold up the head restraint.

NOTE:

Check that the seams are correctly positioned in relation to the frame.
