Installing the headlining

Install:

in reverse order.

(Cars without sun roofs: Remove the spacer.)

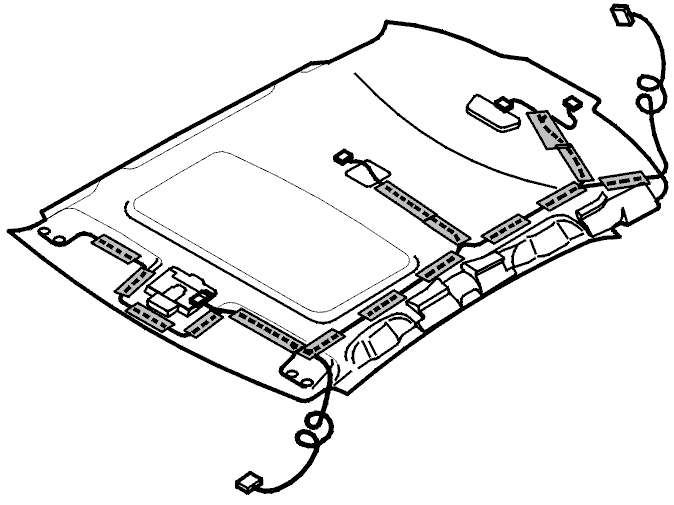

Fig 1: Wiring On Top Of Headlining Must Be Reinstalled

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Certain components must be transferred when replacing the headlining.

See the illustration for the routing of the cable harness.

CAUTION:

Do not damage or trap any cables when installing the sun visors.
