Front sill trim panel

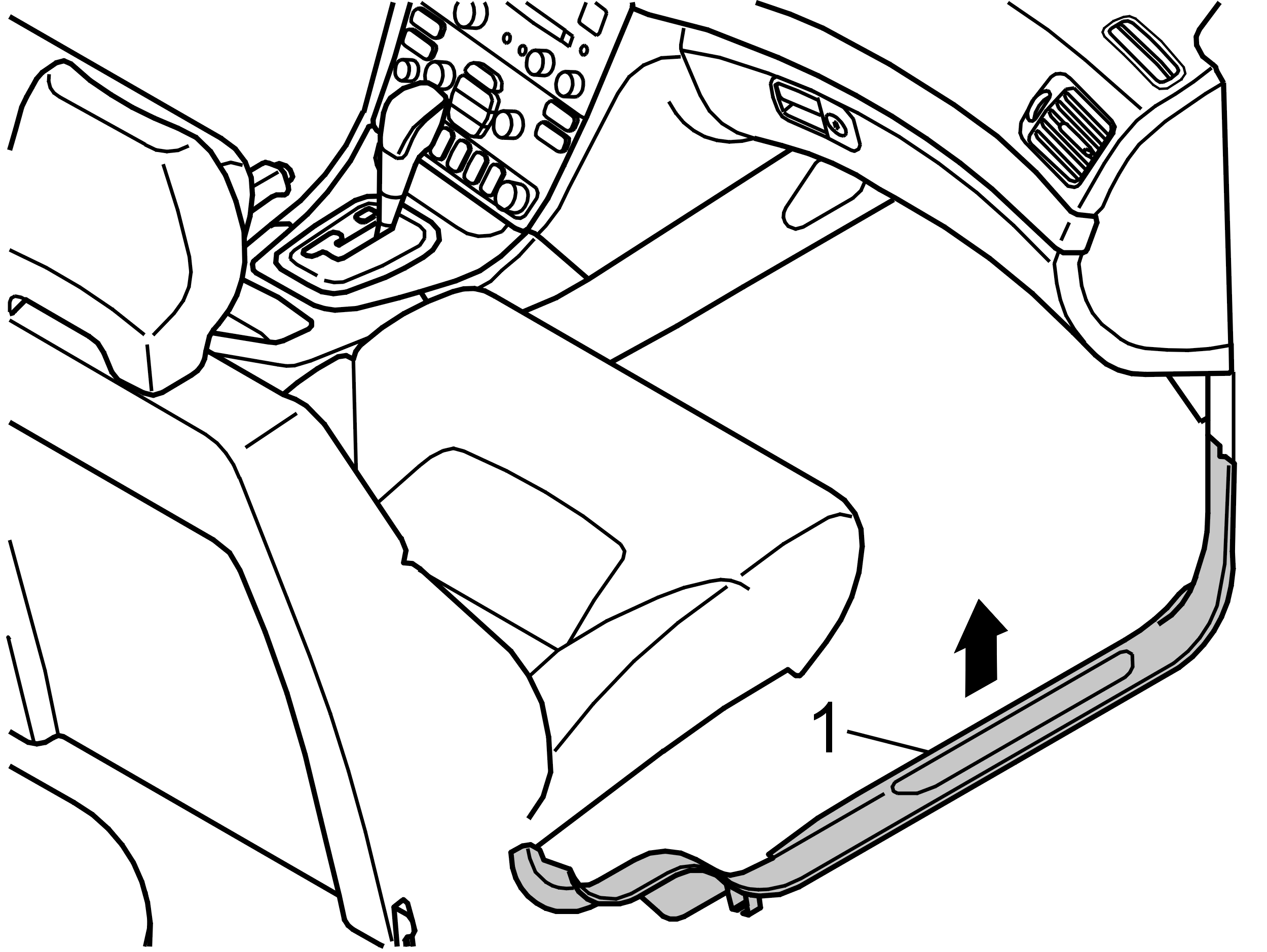

Fig 1: Pulling Sill Trim Panel Up
GLL104944Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull the sill trim panel straight up.

Pull out the sill trim panel at the front and rear edges.

Install:

In reverse order.
