Removing clothes holder, head restraints

Press down the 2 catches in the underside of the protective pad. Press through the upholstery.

Lift the head restraint upwards while the catches are pressed in.

Remove the head restraint.

Fig 1: Cutting Upholstery At Zip Fastener

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the 2 staples locking the zip fastener.

Open the zip fastener by pulling it apart with your fingers.

Remove:

• upholstery
• the shear fabric

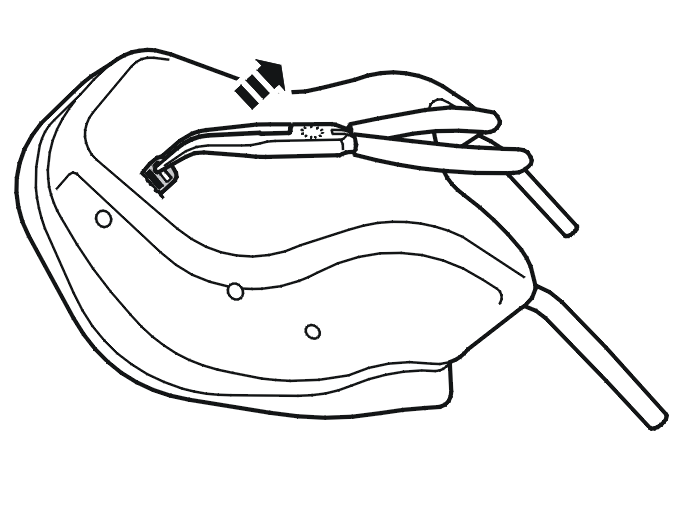

Fig 2: Pulling Retaining Clip Straight Out Using Round-Nose Pliers

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull the retaining clip (1) straight out. Remove the retaining clip.

HINT: Use round-nose pliers.
