Installing clothes holder head restraints

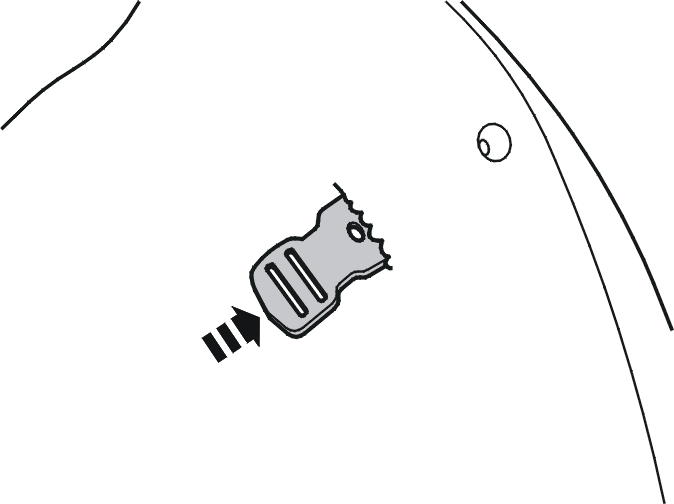

Fig 1: Inserting A New Retaining Clip

Courtesy of VOLVO CARS OF NORTH AMERICA.

Insert a new retaining clip.

NOTE:

Ensure that the clips are correctly located. See the illustration.

Install:

HINT: Heat up the upholstery slightly before installation to make it more elastic.

Ensure that the hole in the upholstery is directly opposite the hole in the clothes holder.

Fig 2: Closing Zip Fastener

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use a zip fastener catch to close the zip fastener.

NOTE:

Ensure that all seams are correctly positioned and the padding is not kinked under the upholstery.

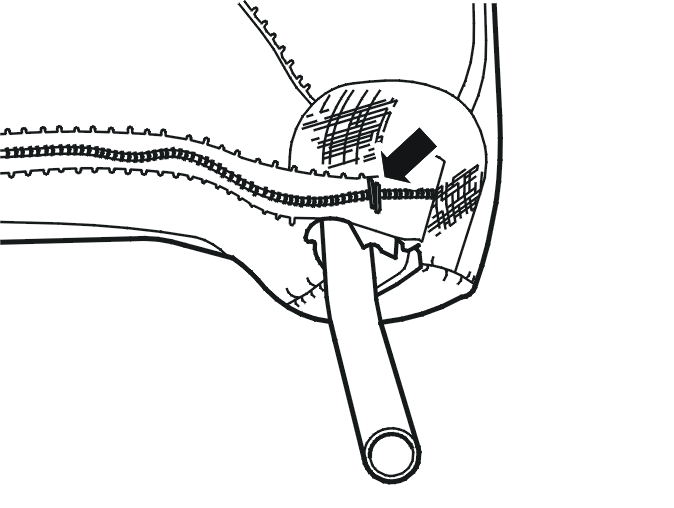

Fig 3: Stapling Zip Fastener Together At Both Ends

Courtesy of VOLVO CARS OF NORTH AMERICA.

Staple the zip fastener together at both ends.

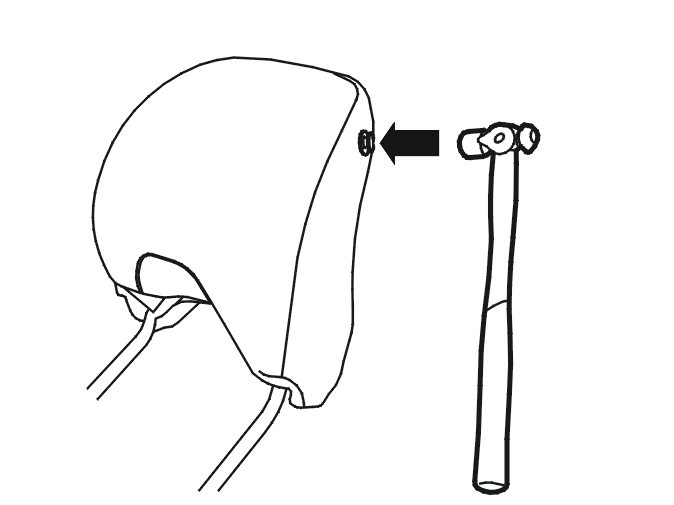

Fig 4: Installing And Pressing Clothes Holder Into Place Tapping It Gently Using A Hammer

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install and press the clothes holder into place.

HINT: Tap it gently using a hammer to ensure it is properly secured.

Install the head restraint. Press the head restraint down until the catches engage.

NOTE:

Lift in the head restraint. Check that it cannot be moved upwards.
