Safety Equipment: Notes

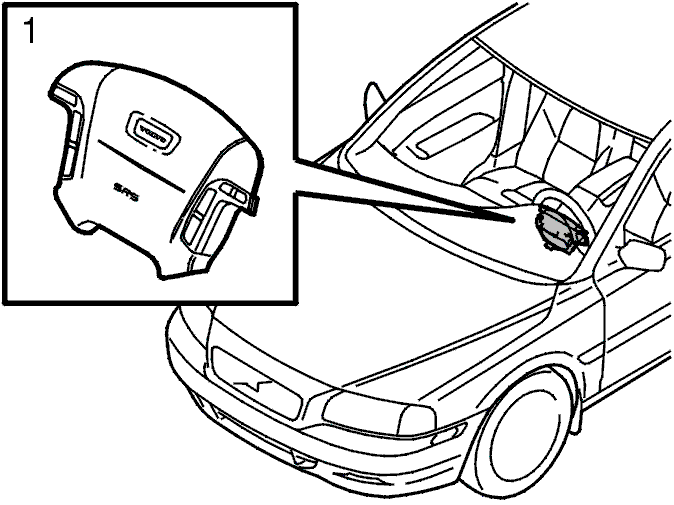

Fig 1: Identifying Steering Wheel Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

The steering wheel module is unlocked in two stages.

When working on the steering wheel, steering shaft or steering gear, certain operations must be carried out according to the methods for working on the steering wheel module.

Fig 2: Identifying Passenger Airbag Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

The passenger airbag module is unlocked in two stages.

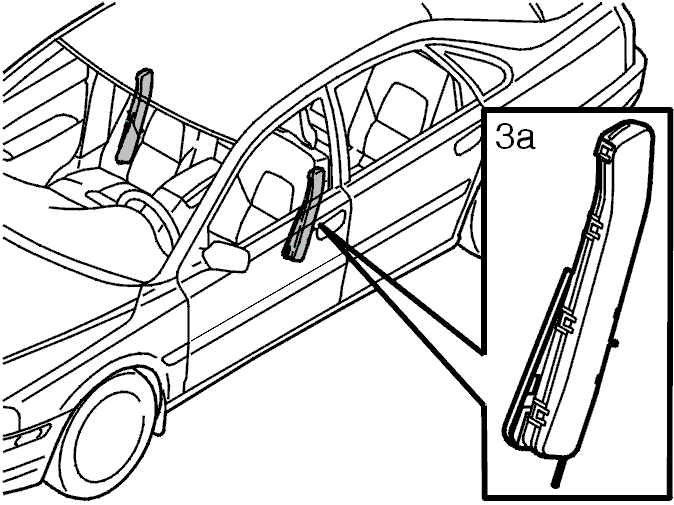

Fig 3: Identifying Side Airbags

Courtesy of VOLVO CARS OF NORTH AMERICA.

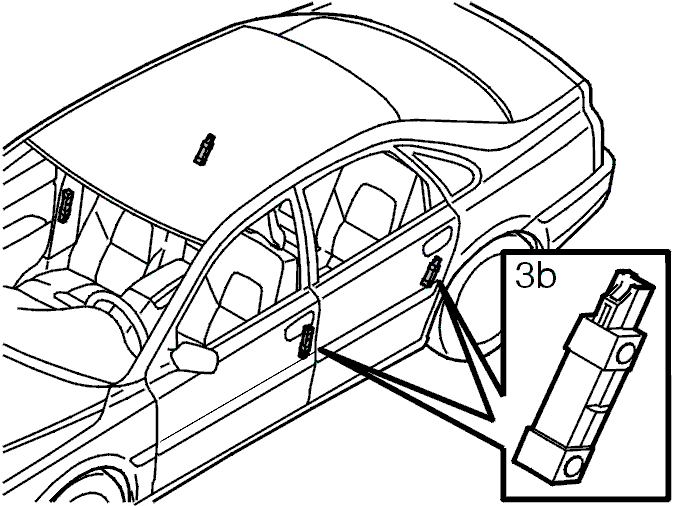

1. There are side airbags in both the front seats.
2. The sensors are located in the B and C-posts.
3. The sensors are located in the B posts.

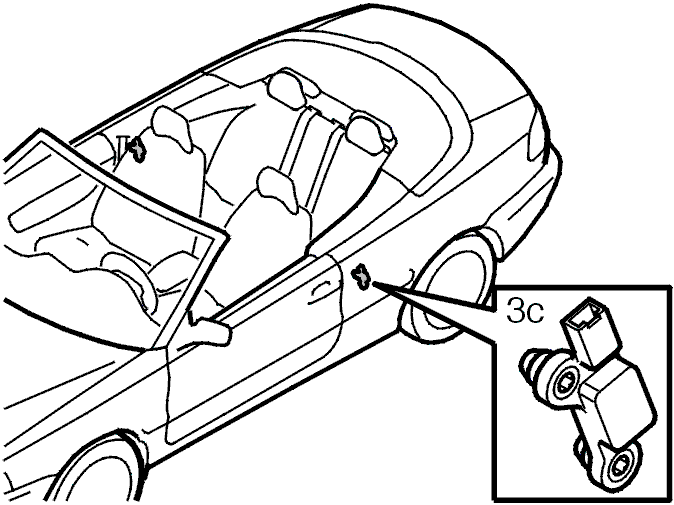

Fig 4: Locating Sensors In B And C Posts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 5: Locating Sensors In B Posts

Courtesy of VOLVO CARS OF NORTH AMERICA.

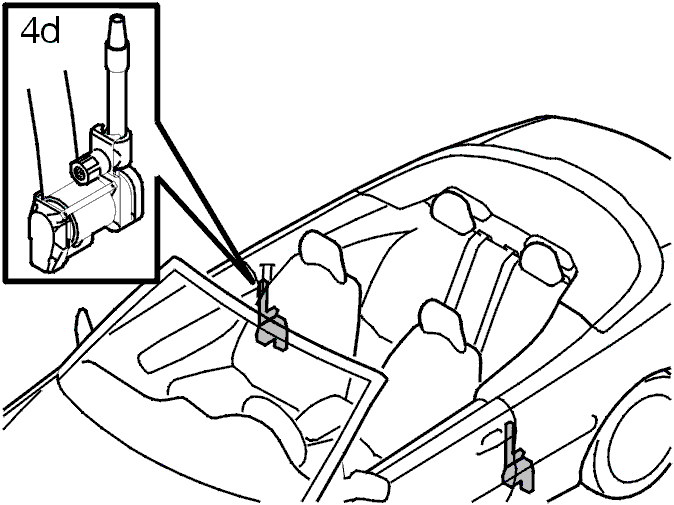

Fig 6: Locating Seat Belt Tensioners

Courtesy of VOLVO CARS OF NORTH AMERICA.

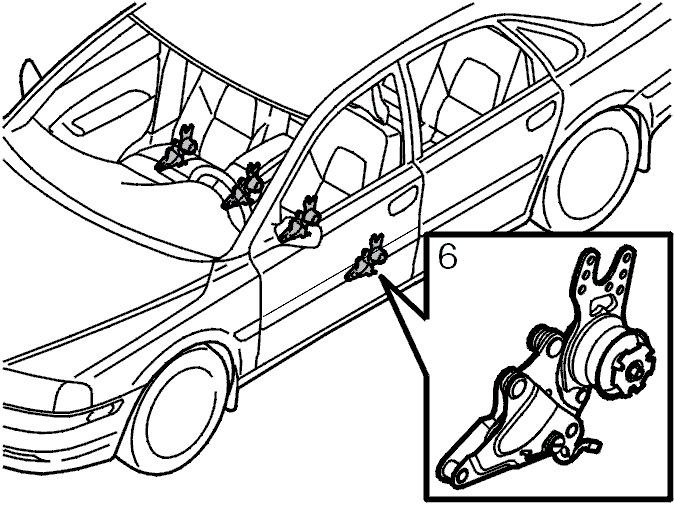

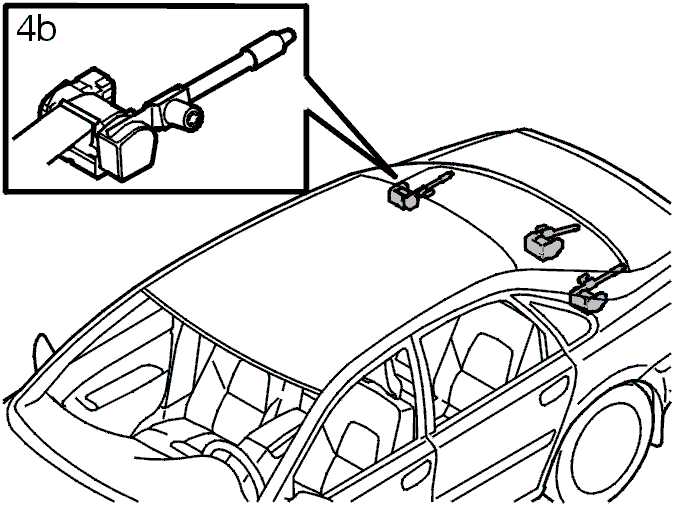

All seat belts are equipped with pyrotechnical seat belt tensioners.

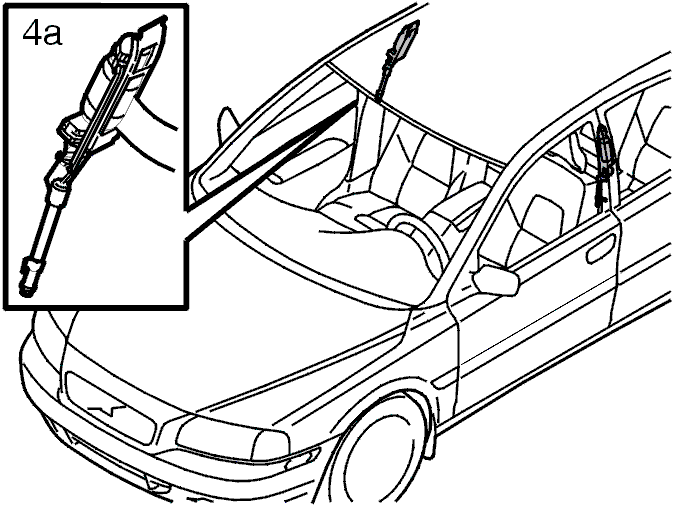

Fig 7: Identifying Pyrotechnical Seat Belt Tensioners

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 8: Identifying Rear Seat Belts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 9: Front Seat Belt (Inertia) Reel

Courtesy of VOLVO CARS OF NORTH AMERICA.

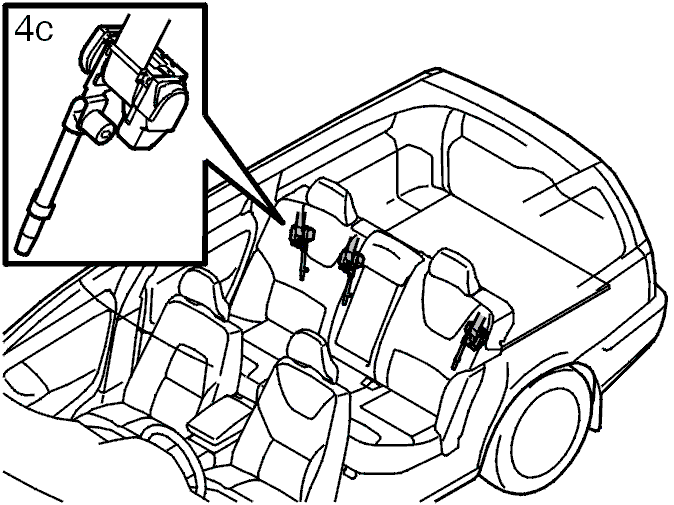

Fig 10: Identifying Rear Seat Belt (Inertia) Reel

Courtesy of VOLVO CARS OF NORTH AMERICA.

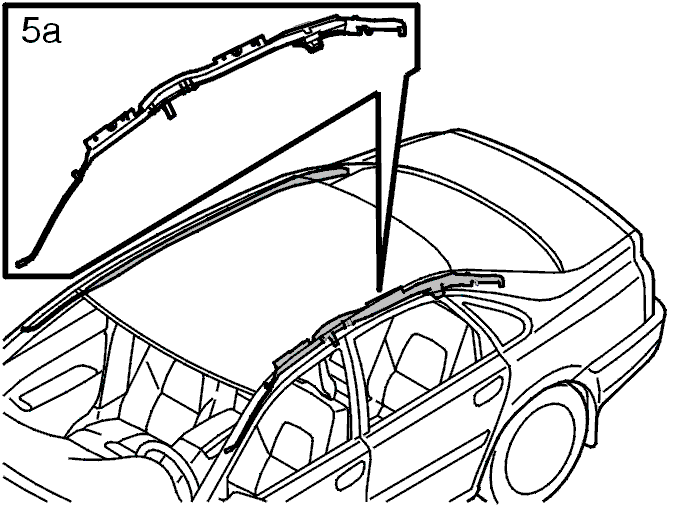

Fig 11: Identifying Inflatable Curtain

Courtesy of VOLVO CARS OF NORTH AMERICA.

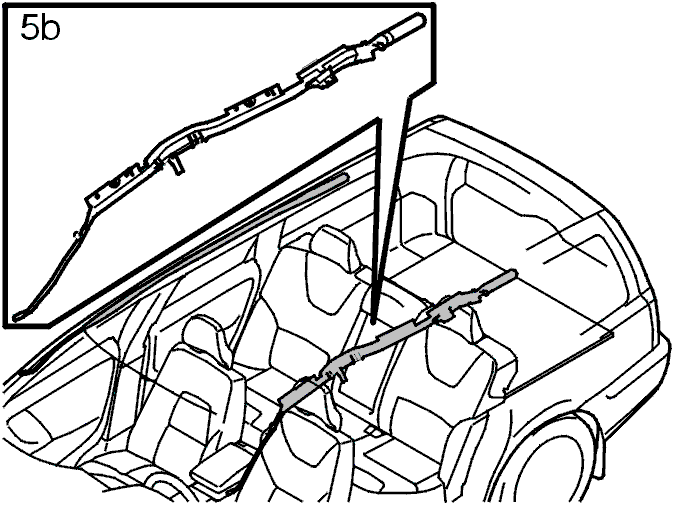

The curtain consists of two inflatable protective curtains located in the edges of the roof on each side of the car.

The curtain shields the upper section of the car interior, from the A to the C-posts.

Fig 12: Curtain Shields On Upper Section Of Car Interior

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 13: Identifying Whiplash Protection Mechanism

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to all car models from 1999- inclusive

The front seats have the WHIPS function. The aim of WHIPS is to minimize the risk of whiplash injuries in the event of a collision.

The system is completely mechanical and is integrated into the seats.

Fig 14: Identifying SRS Control Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

The SRS control module is located between the parking brake and the gear selector lever in the center console.

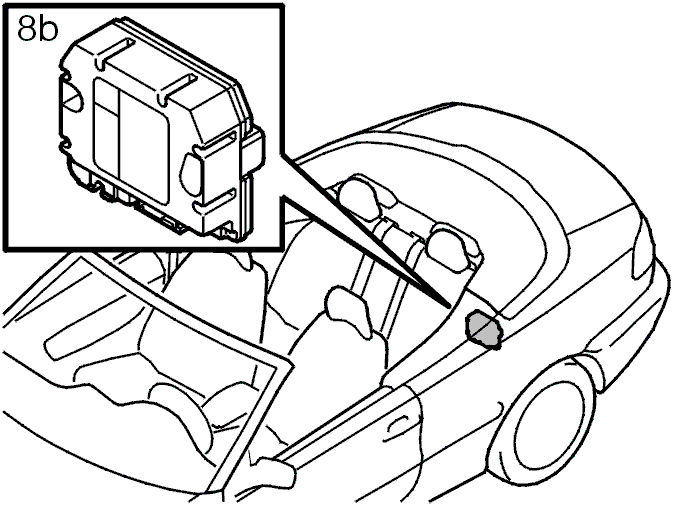

Fig 15: Identifying Roll Over Protection System (1 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

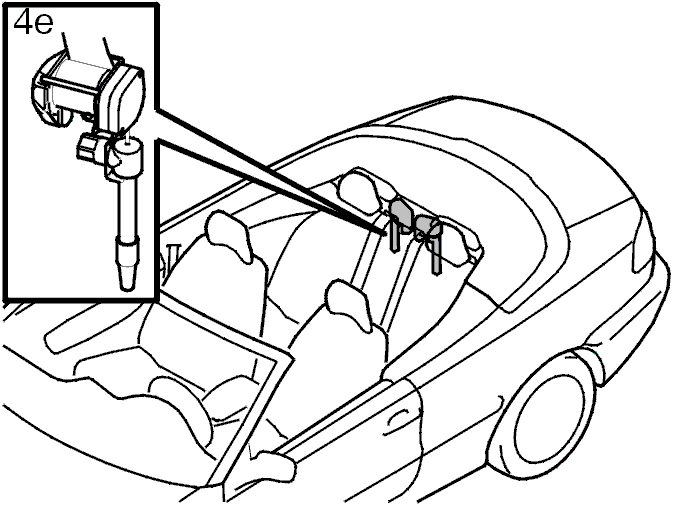

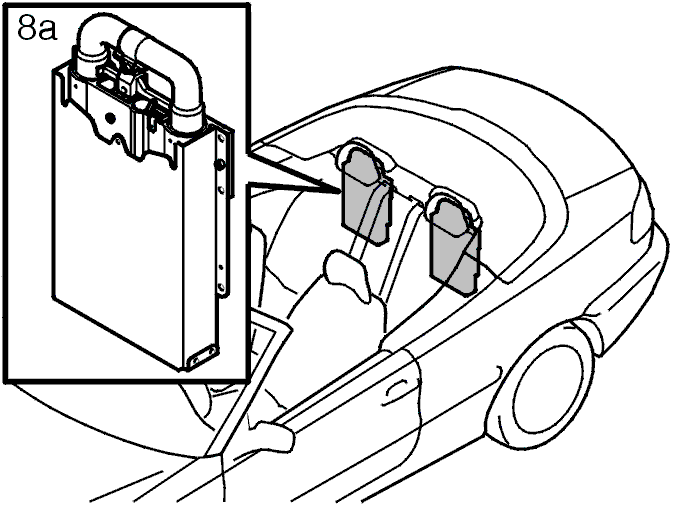

ROPS is a mechanical safety system where two roll-over bars deploy automatically if the car rolls over. These are located behind the rear head restraints.

Fig 16: Identifying Roll Over Protection System (2 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.
