Location Of Components

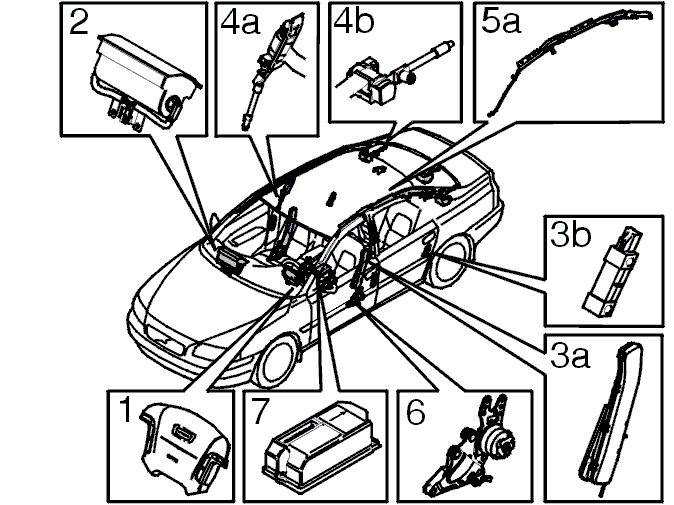

Fig 1: Identifying Steering Wheel Module, Passenger Airbag Module, SIPS Module, Seat Belt And WHIPS
GLL105357Courtesy of VOLVO CARS OF NORTH AMERICA.
  1. The steering wheel module. See Steering Wheel Module
  2. The passenger airbag module. See Passenger Module
  3. SIPS module (Side Impact Protection System) and Sensors in B- and C-posts, see SIPS Module (Side Impact Protection System)
  4. Seat belt with seat belt tensioner, front seat, see Seat Belts And Seat Belt Tensioners
  5. Seat belt with seat belt tensioner, Rear seat, see Seat Belts And Seat Belt Tensioners
  6. IC, Inflatable Curtain see IC, Inflatable Curtain
  7. WHIPS (Whiplash Protection System). See WHIPS (Whiplash Protection System)
  8. The SRS control module. See SRS Control Module

Other  Other SRS components, see Other
