Connecting Cables To the Seat Airbag (SIPS)

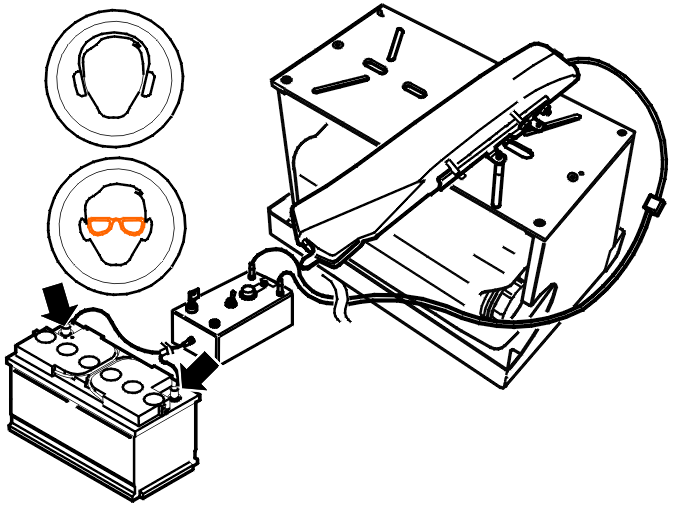

Fig 1: Adapter Cables Connected To The Seat Airbag

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the key from the discharge box and store so that it is inaccessible for unauthorized use.

Select the correct adapter cable for the airbag.

Connect the adapter cable to the airbag. Check that it is properly connected.

Check that the cable is not near the airbag.

Lay out the connection cable so that the user is 9 m from the airbag.

Connect the adapter cable to the connection cable and fully extend the leads.

Connect the cable to the discharge box.

Connect the discharge box to a fully charged 12 V battery.
