Connecting Cables To the Inflatable Curtain (IC)

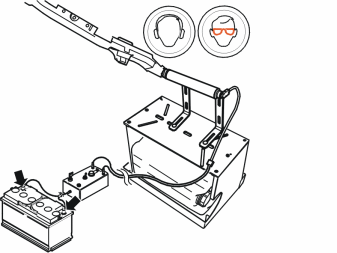

Fig 1: Cables Connected To Inflatable Curtain

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the key from the discharge box and store so that it is inaccessible for unauthorized use.

Select the correct adapter cable for the gas generator.

Connect the adapter cable to the inflatable curtain. Check that it is properly connected.

Lay out the connection cable so that the user is 9 m from the inflatable curtain.

Connect the adapter cable to the connection cable and fully extend the leads.

Connect the cable to the discharge box.

Connect the discharge box to a fully charged 12 V battery.
