Replacing Seat Belt Buckles

Removing front seat belt buckle

Remove:

• the seat from the car. See Lifting the Front Seats In And Out . Disconnect the connector from the seat frame.
• the tie straps (x2) for the cable harness
• screw (1)
• the seat belt buckle.

Removing rear seat belt buckles

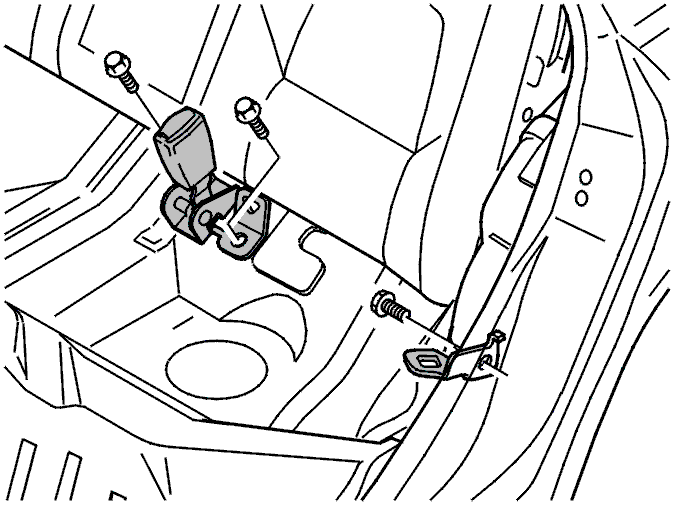

Fig 1: Identifying Rear Seat Belt Buckle

Courtesy of VOLVO CARS OF NORTH AMERICA.

• the rear seat cushion.
Fig 2: Lifting Front Edge Of Cushion

• the screw for the seat belt buckle.

Installing the front seat belt buckle

Install:

• the screw for the seat belt buckle. Tighten to 48 Nm
• the tie straps (x2) for the cable harness
• the connector in the seat frame
• the seat in the car. See Lifting the Front Seats In And Out

Installing rear seat belt buckles

• screw for the seat belt buckle. Tighten to 48 Nm
• the backrest.
Fig 3: Lifting Front Edge Of Cushion
