Positioning the Stop

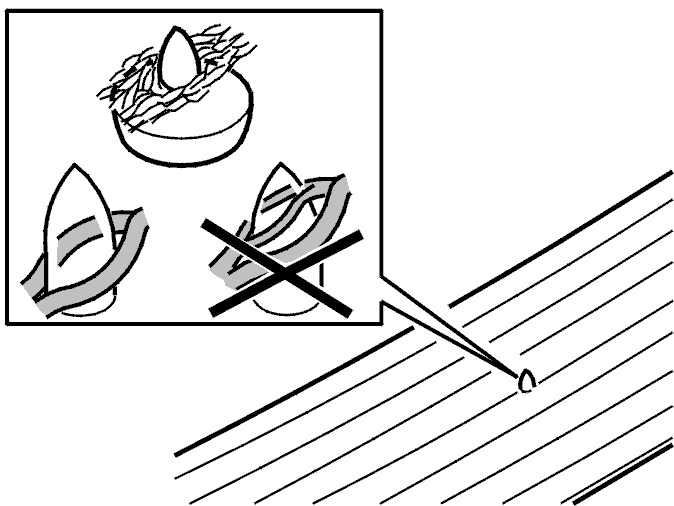

Fig 1: Checking Belt Does Not Fray When Spike On Stop Is Pressed Through Belt

Courtesy of VOLVO CARS OF NORTH AMERICA.

This method covers all stops positioned on seat belts in the vehicle. The function of the stop is to prevent too much strap from rolling onto the bobbin, making the belt difficult to operate and handle.

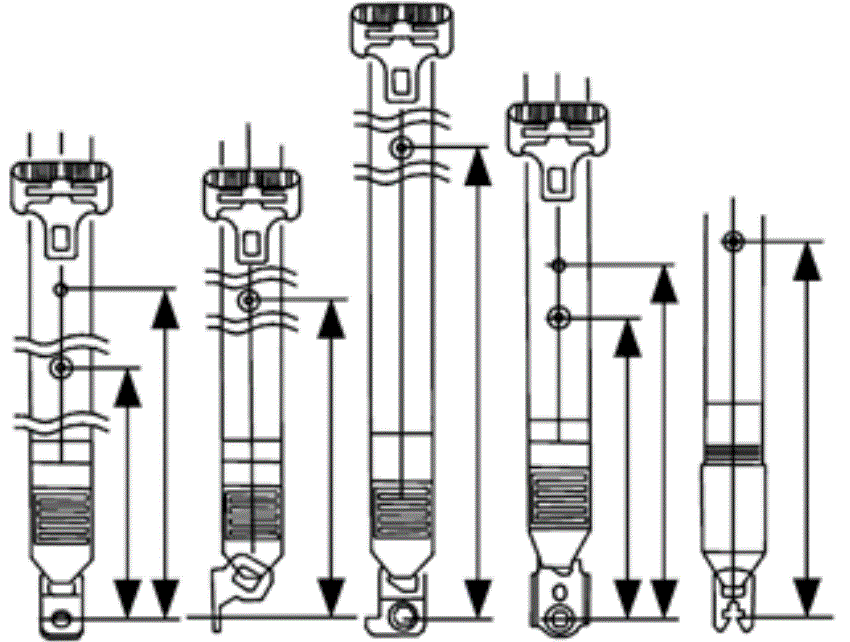

The stop must be positioned in the center of the belt at a distance of XXXX mm from the end mounting.

Check that the belt does not fray when the spike on the stop is pressed through the belt.

Thread the cover onto the stop.

Fig 2: Checking That Belt Does Not Fray When Spike On Stop Is Pressed Through Belt

Courtesy of VOLVO CARS OF NORTH AMERICA.

Car	Market	Seat belt type	Distance to the first stop (mm)	Distance to the second stop (mm)	Type of seat belt (inertia) reel
	S60	US/Aus/Jap	Right front	390 10	-
		-	Left front	390 10	-
-	-	Center rear	340 10
-	-	Left rear	455 10
-	-	Right rear	455 10
-
		V70	Right front	390 10	-
		-	Left front	390 10	-
	-	US/Aus/Jap	Right front	390 10	-
	-	US/Aus/Jap	Left front	390 10	-
		-	Center rear	320 10	785 5
		-	Left rear	605 10	835 5
		-	Right rear	605 10	835 5
-
	S80	-	Right front	390 10	-
		-	Left front	390 10	-
	-	US/Aus/Jap	Right front	390 10	-
	-	US/Aus/Jap	Left front	390 10	-
-	-	Center rear	340 10
-	-	Left rear	455 10
			-	Right rear	455 10
-
-
	V70 Auxiliary rear facing seat	-	Right rear	310 10	-
		Left rear	310 10	-	-
			-	Left rear	310 10

Fig 3: Checking That Belt Does Not Fray When Spike On Stop Is Pressed Through Belt

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press the sections together as much as possible.

HINT: Hold the cover in place so that there is no gap. Use round-nosed pliers.

WARNING: The seat belt material must not be overheated or it will melt. If this happens, the entire seat belt assembly must be replaced.

Fig 4: Heating Using A Soldering Iron Or A Hot Air Gun Equipped With A Long Narrow Nozzle

Courtesy of VOLVO CARS OF NORTH AMERICA.

Heat using a soldering iron or a hot air gun equipped with a long narrow nozzle.

Heat until the spike melts and the sections cannot be separated.

Hold in place until the material has cooled down.

Check that the stop is secure and cannot be pulled off.
