Removing Inflatable Curtains

Fig 1: Identifying Inflatable Curtain

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: The hose clamp must not be opened under any circumstances. If the clamp is opened, it will not be possible to guarantee the safety of the joint. Leakage may result which would compromise the function.

Remove:

The headlining. See Headlining, Replacing .

Fig 2: Identifying Igniter Wire Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the connector. See Igniter Wire Connector .

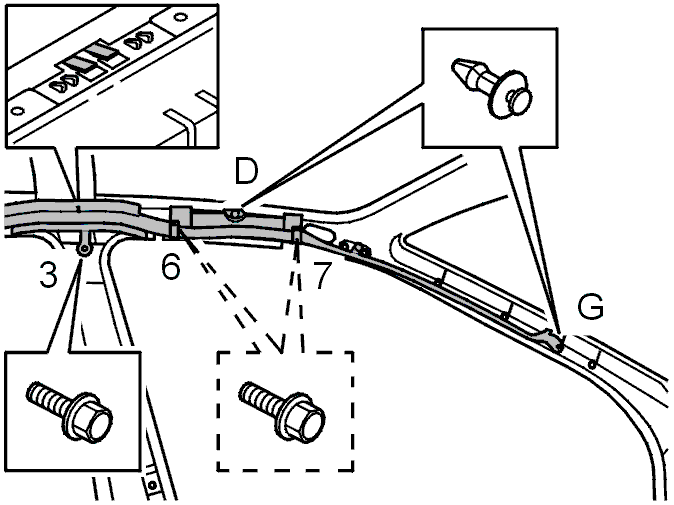

Fig 3: Clips G & D

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

clips G and D
the clips at the top of the A-post
the screw (3) and unhook the IC (inflatable curtain).

(6 and 7 are removed when removing the grab handle)

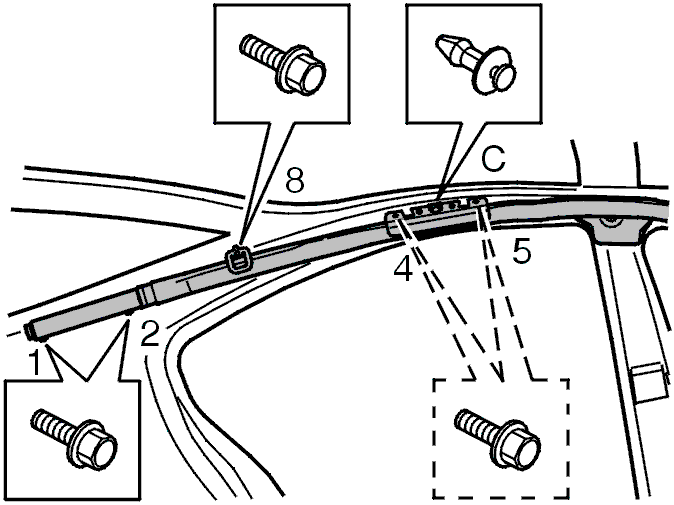

Fig 4: Identifying Bolts And Inflatable Curtain

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

screws 1, 2 and 8. Lift out the inflatable curtain.

(4 and 5 are removed when removing the grab handle)
