Removing Front End Mountings

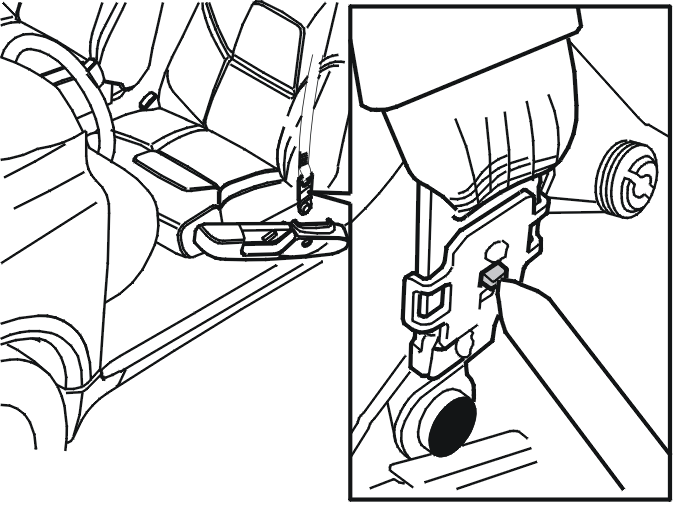

Fig 1: Using A Weatherstrip Tool To Disconnect Seat Belt From End Mounting
GLL141251Courtesy of VOLVO CARS OF NORTH AMERICA.

Move the front seat as far forward as possible.

Remove the side panel. See Side Panel (-2004) or Side Panel Front Seat, Replacing (2005-).

NOTE: Use a weatherstrip tool to disconnect the seat belt from the end mounting. Carefully press the locking tab, as shown.

Remove the screw from the seat. Remove the end mounting.
