Installing Front End Mountings

NOTE: For tightening torques, see Tightening Torque .

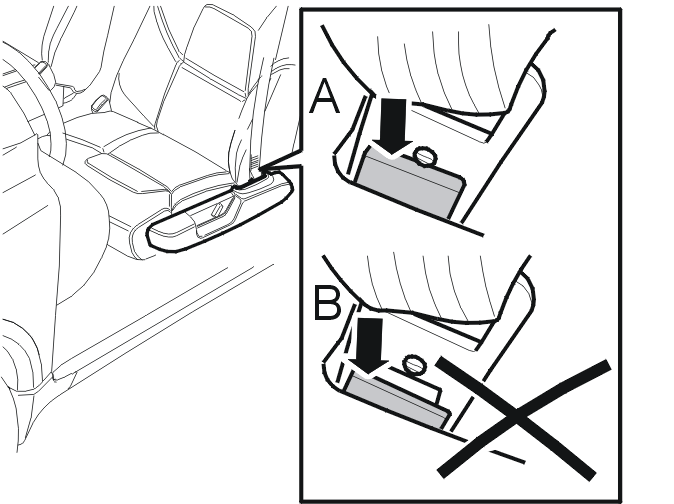

Fig 1: Pressing Seat Belt Into End Mounting

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

Press the seat belt into the end mounting.

NOTE: A clear click is heard when the seat belt has locked correctly with the end mounting.

NOTE: Also check that the seat belt has locked correctly with the end mounting by looking at the reverse of the end mounting.

A = Correctly locked position.

B = If the lock facing does not lock correctly with the end mounting, see A, replace the end mounting with a new one.

NOTE: Check that the seat belt is secure by jerking it hard in an upwards direction.

Reinstall the side panel. See Side Panel (-2004) or Side Panel Front Seat, Replacing (2005-).
