Adjusting the Steering Wheel

NOTE: Applies to vehicle's with a 3 spoke steering wheel.

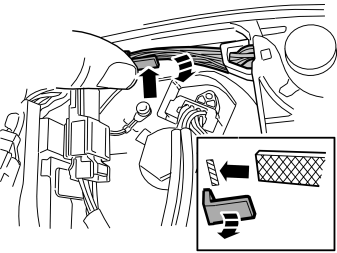

Fig 1: Breaking Off L Shaped Plastic Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.

Break off the L shaped plastic bracket.

NOTE: Ensure that the broken piece does not remain in the steering wheel.

Carefully bend the cable harness down.

Smooth off the break surface on the steering wheel using a fine file or similar.

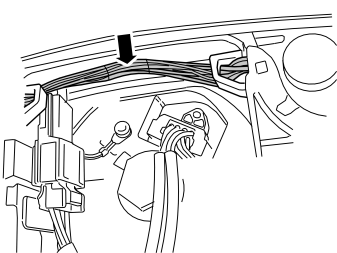

Fig 2: Removing Tape Around Cable Harness

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the tape around the cable harness.

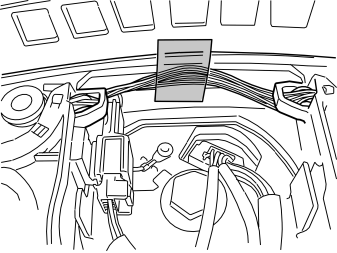

Fig 3: Spreading Cable Harness Out As Flat As Possible

Courtesy of VOLVO CARS OF NORTH AMERICA.

Spread the cable harness out as flat as possible.

Apply tape, P/N 9511097.

Fig 4: Bending Up Outer Surround Slightly

Courtesy of VOLVO CARS OF NORTH AMERICA.

Bend up the outer surround slightly.

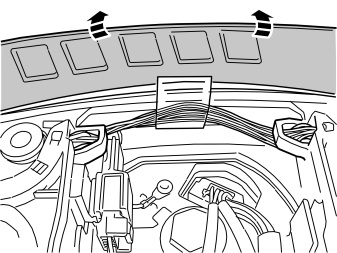

Fig 5: Bending One Of Tape Ends In Between Outer And Inner Surround

Courtesy of VOLVO CARS OF NORTH AMERICA.

Bend one of the tape ends in between the outer and inner surround.

Carry out the same with the other tape end so that the tape overlaps on top.
