Removing the Mug Holder

Remove the armrest. See Center Arm Rest/Integrated Child Seat .

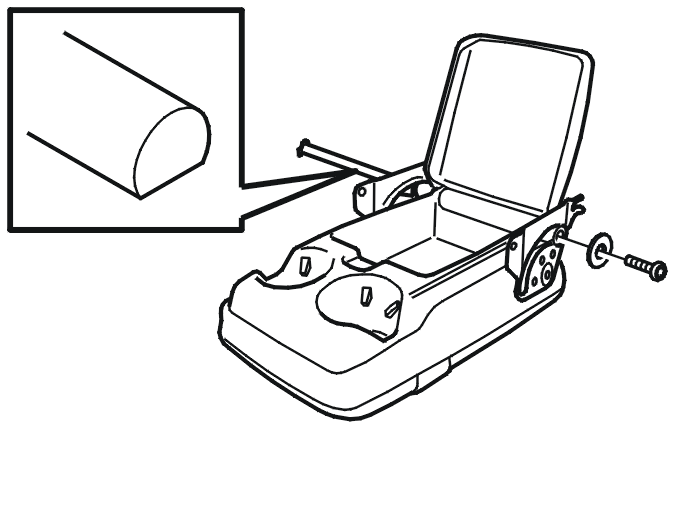

Fig 1: Removing Screw And Pulling Out Shaft

Courtesy of VOLVO CARS OF NORTH AMERICA.

HINT: Make a note of the position of the shaft.

Remove 1 screw.

Pull out the shaft. Remove the cover.

HINT: If the shaft is stuck, gently tap it out. Use a drift and a hammer.

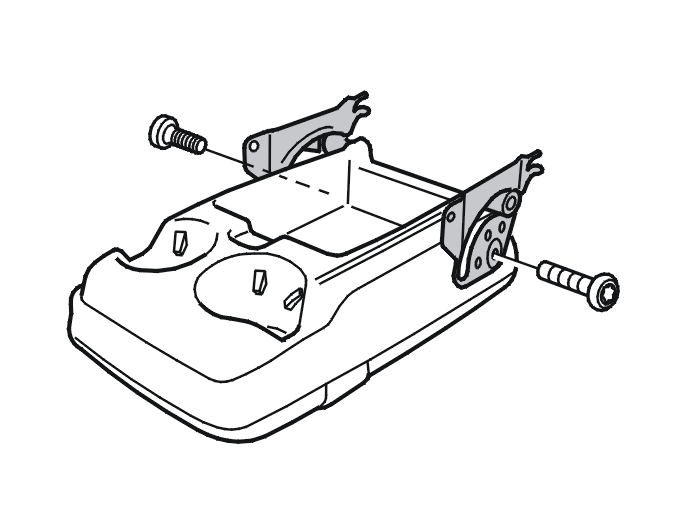

Fig 2: Identifying Screws And Brackets

Courtesy of VOLVO CARS OF NORTH AMERICA.

HINT: Note the position of the brackets on the left and right-hand sides.

Remove:

• the screws, 1 on each side
• the brackets, 1 on each side.

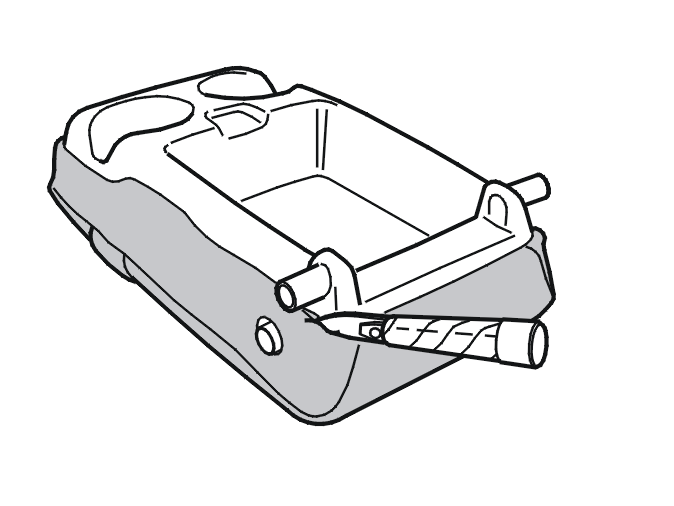

Fig 3: Removing Upholstery

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the Velcro seam.

Remove the upholstery.
