Installing the Mug Holder

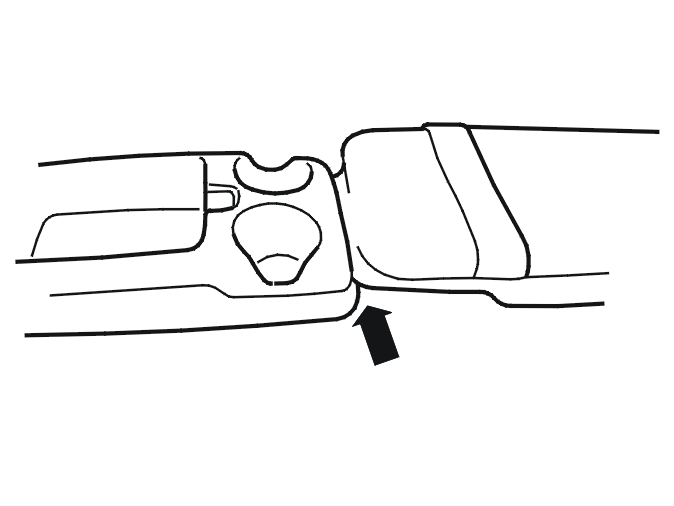

Fig 1: Installing Upholstery

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the upholstery and cushion.

Start at the front edge. Press the Velcro strip into place as shown.

Install:

• the brackets on the left and right-hand sides. Use 1 x M5 screw per side. Tighten. See Summary Of Tightening Torques For Specific Components
• the cover and the shaft. Use 1 x M5 screw. Tighten. See Summary Of Tightening Torques For Specific Components
• the armrest. See Center Arm Rest/Integrated Child Seat .
