Transferring the Cover

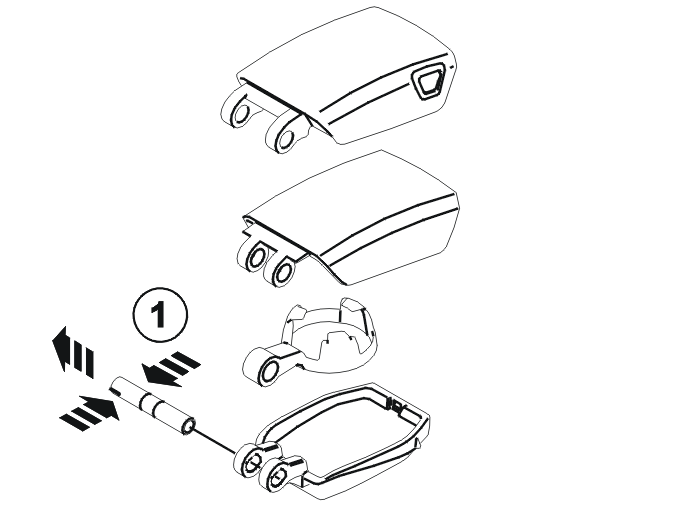

Fig 1: Removing Shaft By Pressing Catches

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the shaft by pressing the catches as shown (1). Press straight out.

HINT: Use a sleeve with extension rod. Press the shaft out.

Fig 2: Removing Covers

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the 2 covers.

HINT: Use a weatherstrip tool and pry from below.

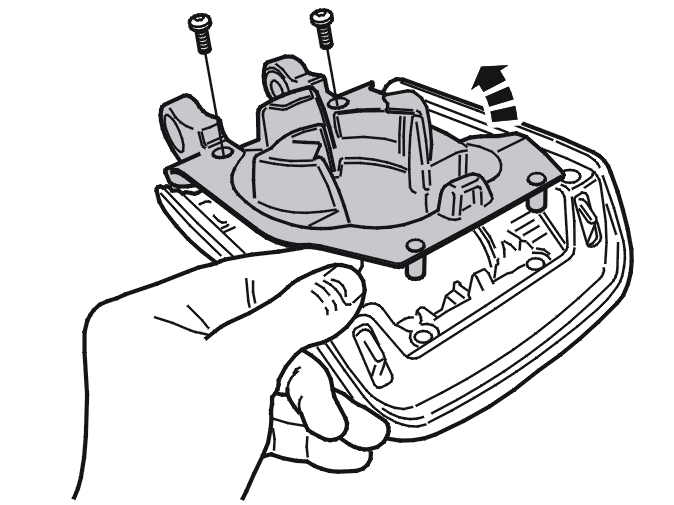

Fig 3: Remove Screws And Unclip Upper Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the 2 screws.

Unclip the upper cover as shown.

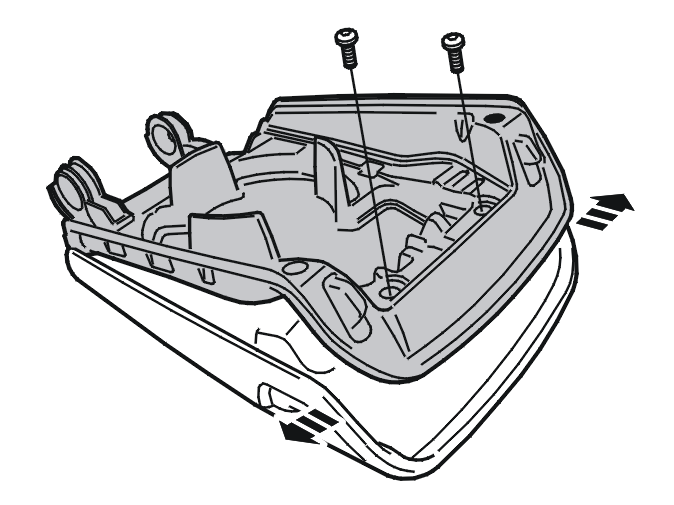

Fig 4: Removing Screws And Disassembling Lower Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the 2 screws.

Disassemble the lower cover by prying out the lower edge at the buttons. Separate the lower section from the upper section.
