Removing the Cover/Armrest

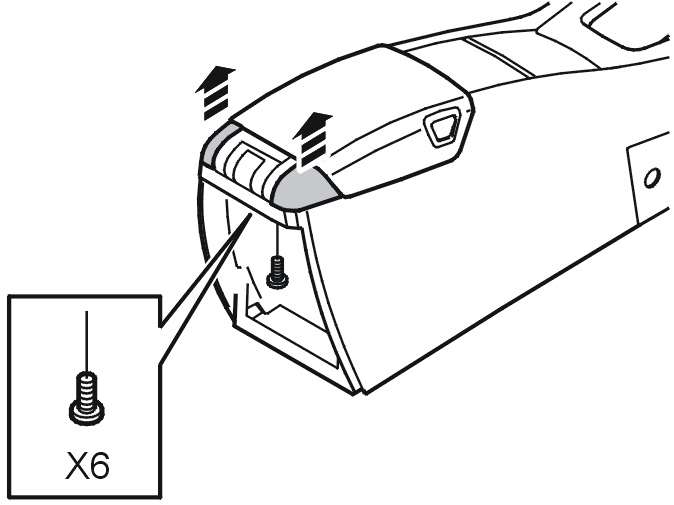

Fig 1: Removing Cover/Armrest

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the rear cigarette lighter socket. See Cigarette Lighter Assembly/Electrical Socket Rear, Replacing
• the 6 screws
• the armrest
• the 2 covers.
