Removing Center Console Compartment

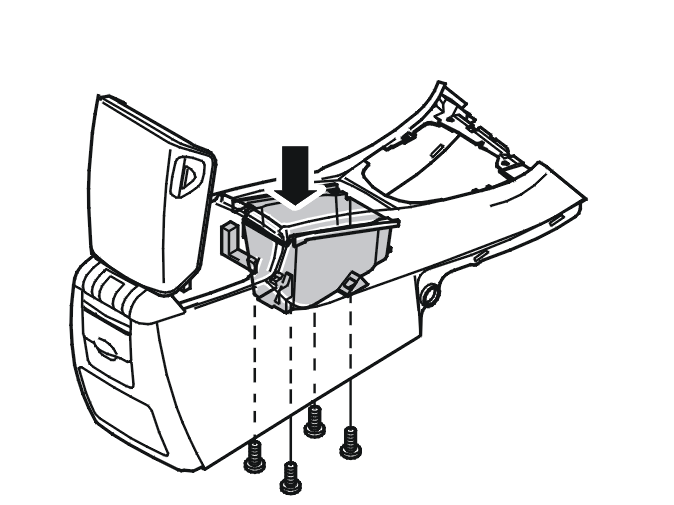

Fig 1: Removing Center Console Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the center console. See Center Console, Replacing
• the 4 screws
• storage compartment.
