Installing the LED In the Center Console, Continued

Fig 1: Identifying Clip And LED

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the clip.

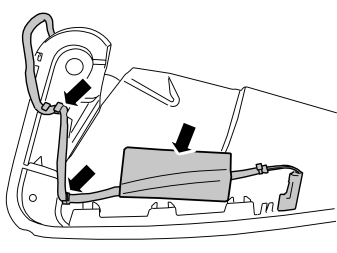

Fig 1: Locating Tape And Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Route and secure the cable according to the previous instructions.

Install the center storage compartment. See Center Console Compartment Middle, Replacing

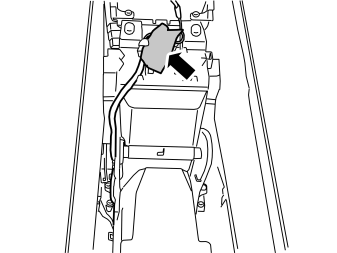

Fig 1: Identifying Center Console LED

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the connector and install the tape.
