Removing the Coin Holder Or CD Compartment

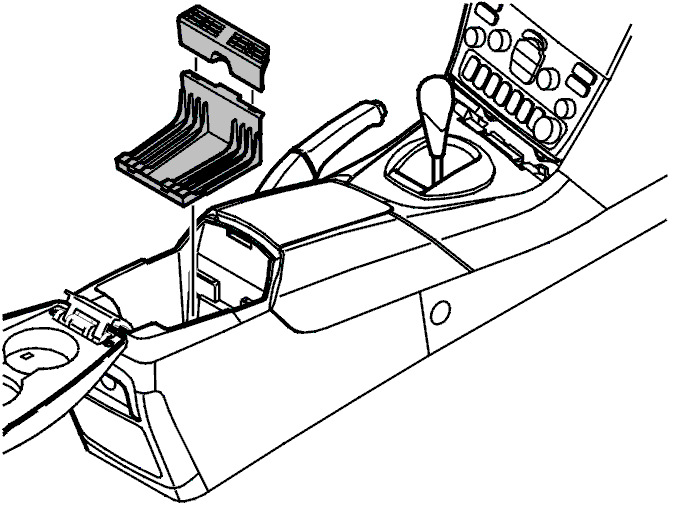

Fig 1: Coin Holder & CD Compartment
GLL107613Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull the coin holder straight up.

Detach the CD compartment by releasing the catch at the front edge.

Lift straight up.
