Wiper Blade And Wiper Arm Adjustment

Special Tools
Courtesy of VOLVO CARS OF NORTH AMERICA.	T9512931 PROTRACTOR Tool number: T9512931 Tool description: PROTRACTOR Tool boards: EU18-1/1; SV18-1/1; UK99
Courtesy of VOLVO CARS OF NORTH AMERICA.	T9997237 ADAPTER Tool number: T9997237 Tool description: ADAPTER Tool boards: 30

9512931 and 9997237 .

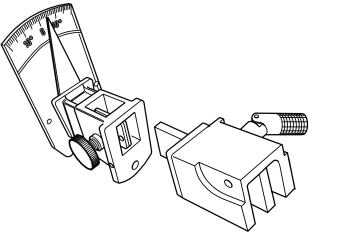

Fig 1: Identifying Protractor And Adapter Wiper Blade Angle Adjusting Tools

GLL153655

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Check that the wiper motor is in the parked position.

Remove the wiper blade.

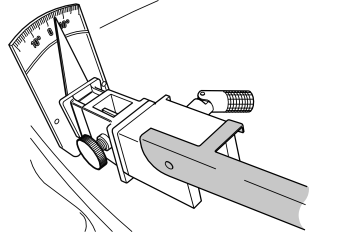

Fig 2: Identifying Protractor And Adapter Wiper Blade Angle Adjusting Tools And Wiper Blade

GLL153656

Courtesy of VOLVO CARS OF NORTH AMERICA.

S40 and V50, early versions

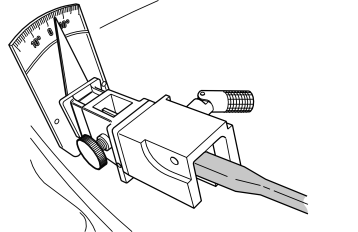

Fig 3: Identifying Protractor And Adapter Wiper Blade Angle Adjusting Tools And Wiper Blade

GLL153657

Courtesy of VOLVO CARS OF NORTH AMERICA.

Others, model year 05 -

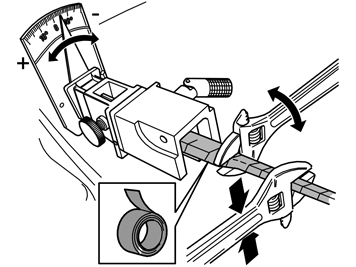

Fig 4: Adjusting Wiper Blade Angle Using Wrenches

GLL153658

Courtesy of VOLVO CARS OF NORTH AMERICA.

Correct angle:

LHD - 5° .
RHD + 5° .

NOTE: It is important that the protractor lies against the window.

CAUTION: Do not damage the wiper arm surface. Use tape to protect the wiper arm.

To install, reverse the removal procedure.
