Unsecuring the contact reel

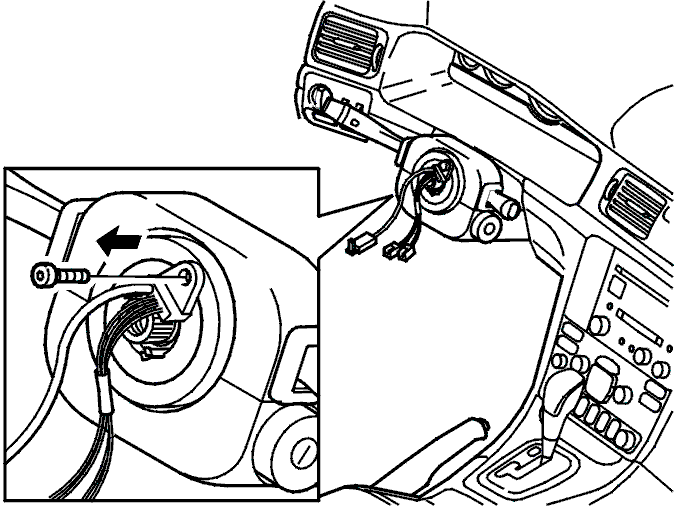

Fig 1: Removing One Torx 20 Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove one Torx 20 screw.

Fig 2: Turning Contact Reel Clockwise To Limit Position

Courtesy of VOLVO CARS OF NORTH AMERICA.

Turn the contact reel clockwise to the limit position.

Fig 3: Turning Contact Reel Counter-Clockwise Two Entire Turns

Courtesy of VOLVO CARS OF NORTH AMERICA.

Turn the contact reel counter-clockwise two entire turns. Then turn counter-clockwise further until the screw hole is at "one o'clock" as shown.
