Oil cooler, flush cleaning: Preparations

WARNING: This page is about a different variant/trim than selected.

A vacuum oil extractor is used to suck the oil through the oil cooler when flushing the oil cooler.

The following material is required to flush the oil cooler:

Fig 1: Vacuum Extractor

Courtesy of VOLVO CARS OF NORTH AMERICA.

Vacuum extractor.

Fig 2: 5 L. Plastic Container

Courtesy of VOLVO CARS OF NORTH AMERICA.

5 l. Plastic container.

Plastic hose

Inner diameter: Ø 10 mm.

Length: 900 mm.

Assemble as shown in the illustration.

Fig 3: Cutting Pipe

Courtesy of VOLVO CARS OF NORTH AMERICA.

Upper oil hose and pipe. This oil hose must be on the upper section of the oil cooler.

Cut the pipe as shown in the illustration. Smooth of the edge of the pipe.

NOTE:

Blow the pipe clean.

Fig 4: Lower Oil Hose And Pipe

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lower oil hose and pipe. This oil hose must be on the lower section of the oil cooler.

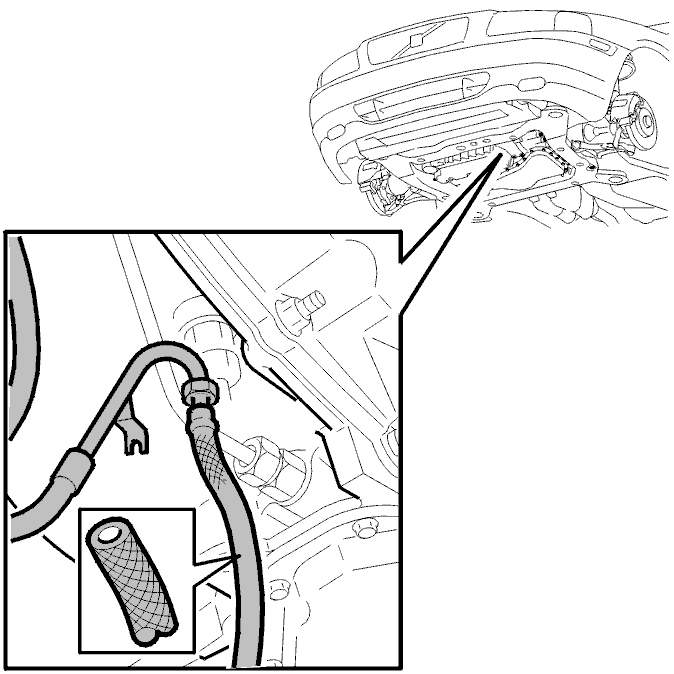

Fig 5: Hose Installed On The Oil Pipe

Courtesy of VOLVO CARS OF NORTH AMERICA.

Plastic hose (compressed air hose).

Inner diameter: Ø 10 mm.

Length: 200 mm.

Press the hose into place on the lower oil pipe.
