Removing the gear selector cable from the lever and mounting on the gearbox

WARNING: This page is about a different variant/trim than selected.

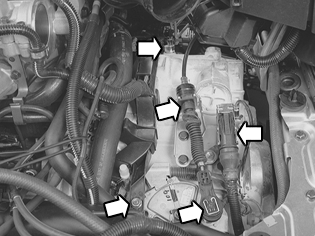

Fig 1: Gear Selector Cable, Lever And Gearbox

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the gearbox cable from the lever. Remove the cable from the bracket on the gearbox.

Disconnect the large connector.

Remove the 2 nuts for the cable conduit on the gearbox.

Disconnect the connector at the cable conduit furthest in at the gearbox.
