Removing the exhaust pipe mounting in the rear cross member

WARNING: This page is about a different variant/trim than selected.

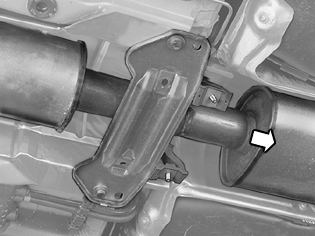

Fig 1: Removing Exhaust Pipe Mounting In Rear Cross Member

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the nuts on the cross member for the exhaust pipe.

Lift the exhaust pipe out from the member using a jimmy bar.

Pull the exhaust pipe backwards so that the rubber mounting ends up behind the member.
