Removing the dipstick
WARNING: This page is about a different variant/trim than selected.
Courtesy of VOLVO CARS OF NORTH AMERICA.

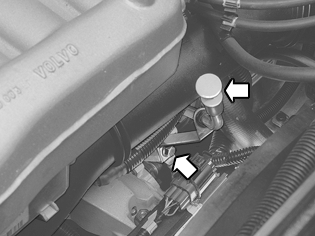

Remove:
- the dip stick pipe and the ground lead
- the screw holding the oil pipe and the ground lead.
Pull the oil pipe straight upwards out of the gearbox. Retain the O-ring.
Seal the hole on the gearbox with a plastic plug.
