Installing Components

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

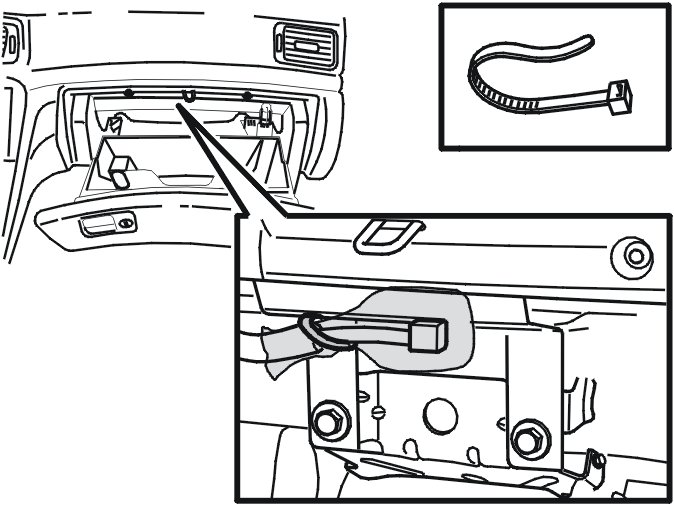

Fig 1: View Of Secured Cable Harness
GLL145833Courtesy of VOLVO CARS OF NORTH AMERICA.

Secure the plastic bag and the cable harness as high up in the bracket for the dashboard as possible. Install the 2 tie straps supplied.

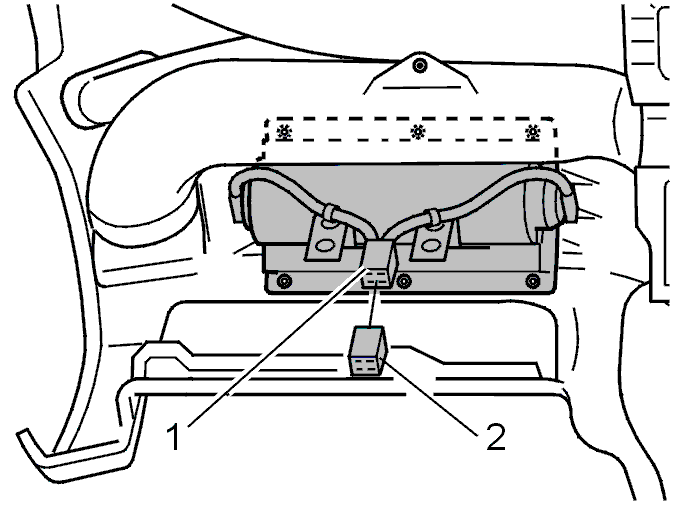

Fig 2: Installing Igniter Cables
GLL101394Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the empty 4-pin connector socket housing (2), colored orange, on the connector (1) for the igniter cables.
