Safety Instructions For Rescue Work (1999-2006): Handling

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

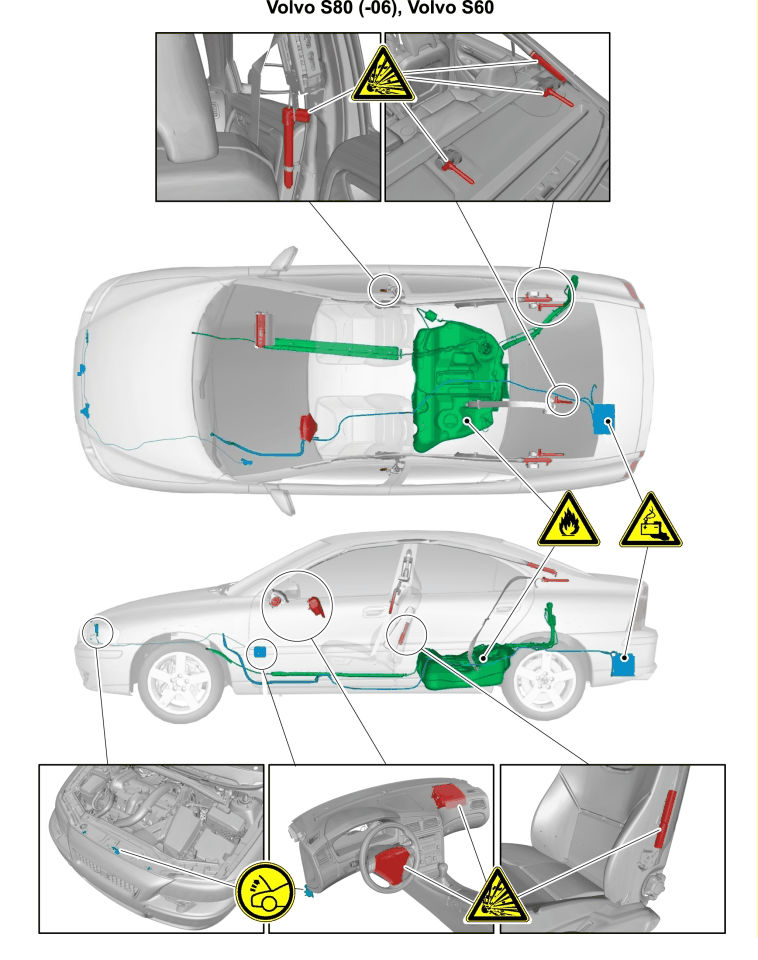

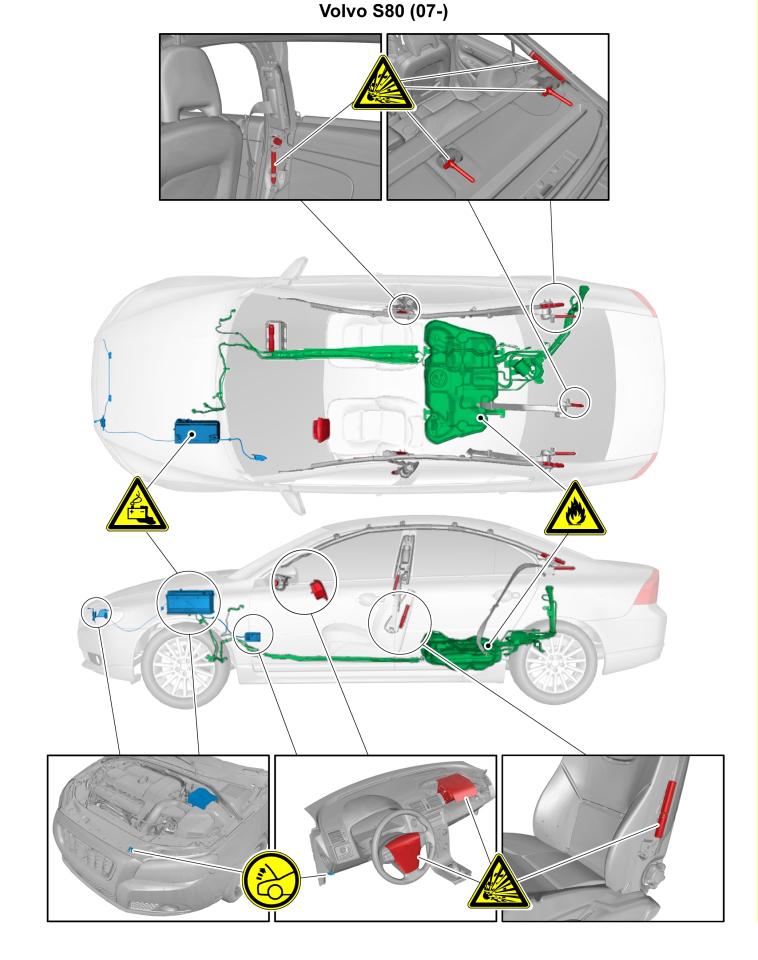

This document contains information about and location of the different types of stored energy (for example. pyrotechnical, fuel, and electric voltage) found in Volvo's different models. All emergency services personnel should be familiar with this document to avoid accidental activation or ignition during rescue actions. The information is not exact, it shall be regarded as general.

WARNING:

For emergency services personnel: Disconnect the battery and wait at least 15 seconds before starting work on the vehicle. This is to prevent inadvertent activation of pyrotechnical SRS components.

NOTE:

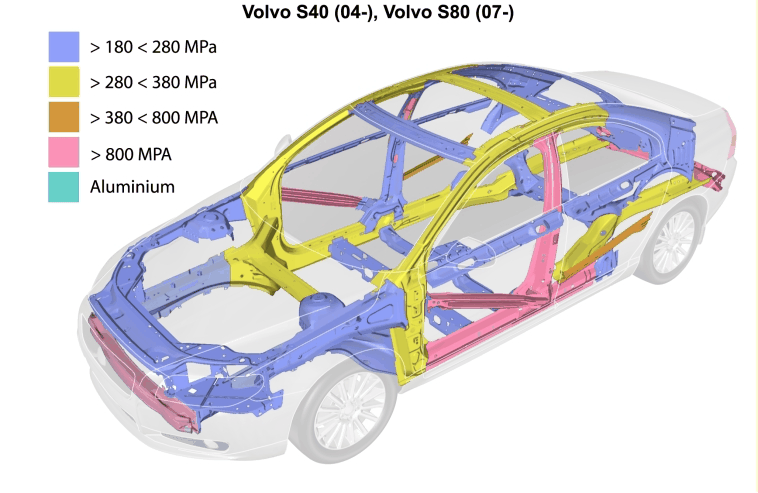

Hardness in the members may vary between different models. In illustrations where several models appear with the same body structure, the variant with the hardest material is always shown.

Fig 1: Identifying Warning Symbols
