Vehicle lifting points, alternative B

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

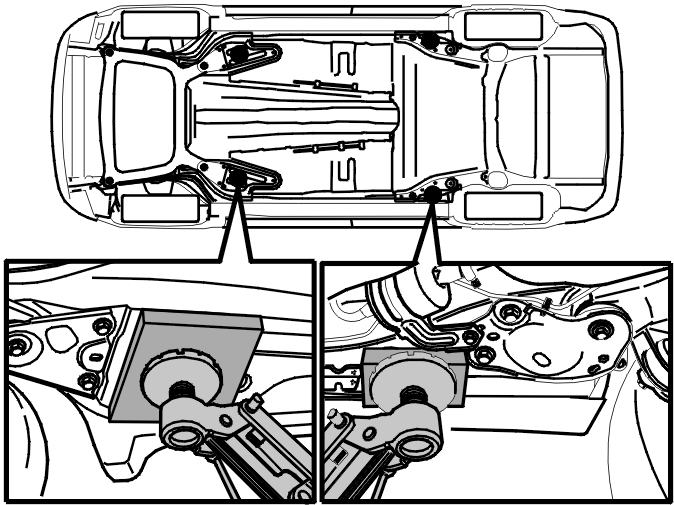

Fig 1: Identifying Vehicle Lift Points (Alternative B)

Courtesy of VOLVO CARS OF NORTH AMERICA.

When jacking the vehicle, the jacking points given below must be used. The jacking plate must have a rubber pad to prevent damage to the vehicle.

Front lift:

A wooden load relief plate (200*200*20 mm) must be used behind the sub-frame bracket.

Rear lift:

A wooden spacer (170*80*50 mm) must be used at the front of the sub-frame bracket.
