Brake Pads, Front
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The brake pads are measured in place in the brake caliper.

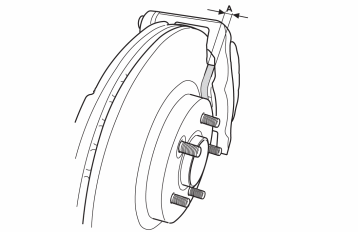

The graphics show where to measure the thickness of the pad.
NOTE:
The brake pad's backing plate is not included in the dimensions.
EXAMPLE AT 20,000 KM SERVICE INTERVAL
| The wear is given in mm on the brake pad for the next service interval.
NOTE:
2 mm (replacement limit) must be added to all dimensions.
|
||
| S60/V70/XC70 | = | 4 mm + 2 mm |
| S60 R/V70 R | = | 3 mm + 2 mm |
| S80 (-06) | = | 4 mm + 2 mm |
| XC90 | = | 6 mm + 2 mm |
EXAMPLE AT 30,000 KM SERVICE INTERVAL
| The wear is given in mm on the brake pad for the next service interval.
NOTE:
2 mm (replacement limit) must be added to all dimensions.
|
||
| S60/V70/XC70 | = | 6 mm + 2 mm |
| S60 R/V70 R | = | 5 mm + 2 mm |
| S80 (-06) | = | 6 mm + 2 mm |
| XC90 | = | 9 mm + 2 mm |
