Generator (GEN) design

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

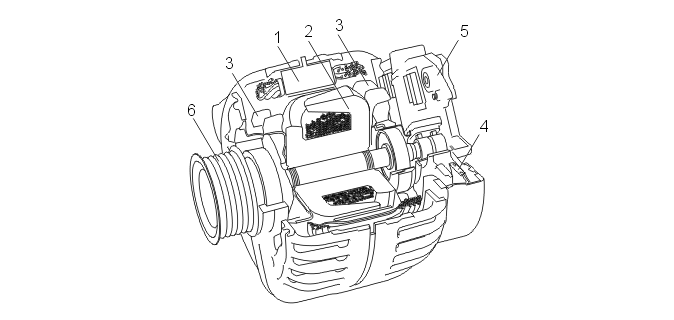

Fig 1: Generator Design

Courtesy of VOLVO CARS OF NORTH AMERICA.

The main components of the generator (GEN) consist of:

Stator
Rotor with slip rings
Integrated cooling fans
DC bridge
Charge regulator
Pulley.

Generator terminals

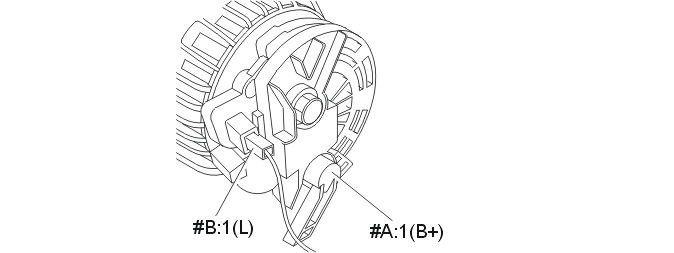

Fig 2: Identifying Generator Terminals

Courtesy of VOLVO CARS OF NORTH AMERICA.

Generator (GEN) terminals:

#A:1. B+
#B:1. To central electronic module (CEM) or engine control module (ECM).
