Bi-Xenon headlights

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

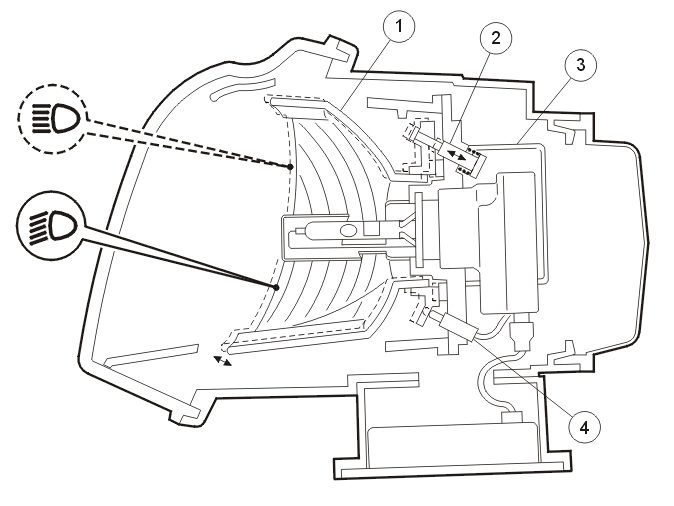

Fig 1: Identifying Bi-Xenon Headlight Assembly
GLL146696Courtesy of VOLVO CARS OF NORTH AMERICA.
1. Movable reflector 3. Motor, high and low beam
2. Reflector control 4. Reflector position sensor
