Heated rear windshield and door mirrors

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

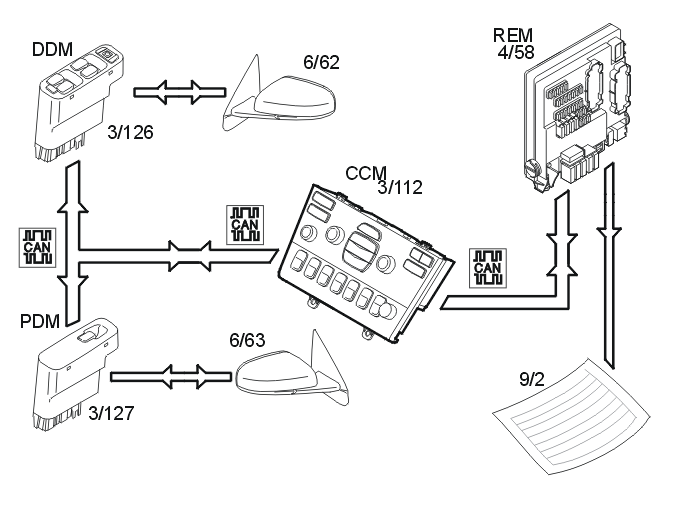

Fig 1: Identifying Heated Rear Windshield & Door Mirror System Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

The heated rear windshield and door mirrors are activated by pressing the switch on the climate control module (CCM) (3/112). The climate control module (CCM) transmits information via the controller area network (CAN) indicating the status of the electrical heating to the following:

rear electronic module (REM) (4/58)
driver door module (DDM) (3/126)
passenger door module (PDM) (3/127).

For further information, see DRIVER DOOR MODULE (DDM) AND PASSENGER DOOR MODULE (PDM) (1999-2006) and REAR ELECTRONIC MODULE (REM) (2005-2006) .
