Installing the relay

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

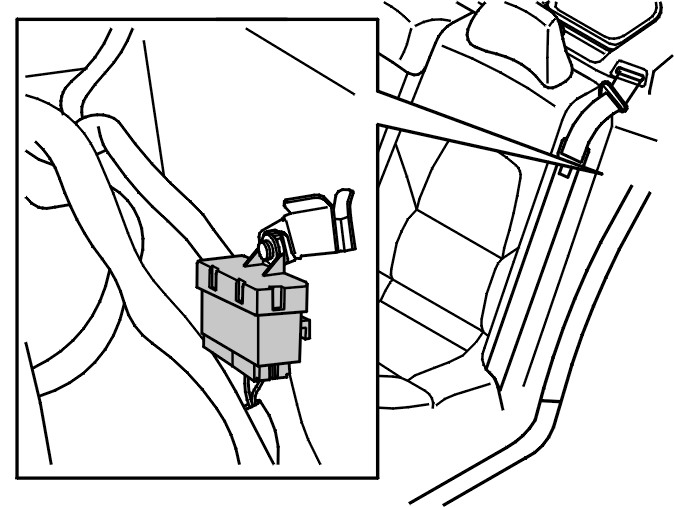

Fig 1: Relay Connector
GLL111140Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the relay and the screw.

Connect the relay connectors.
