Replacing the DVD player (Pioneer)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

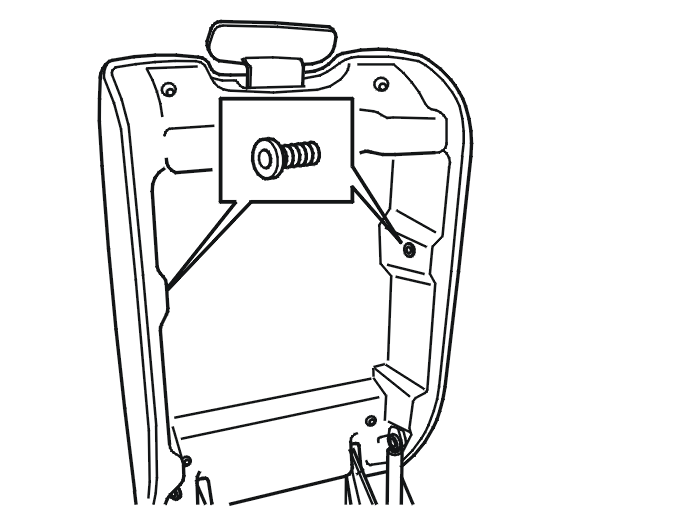

Fig 1: Identifying Cover Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Replace the screws in the cover with new screws with flat heads that will not catch in the DVD player.

Remove the old shelf.

Cut off the tie strap holding the wiring.

Screw the new Velcro mountings into place in the new shelf.

Screw the new shelf into place. Secure the wiring using a tie strap.

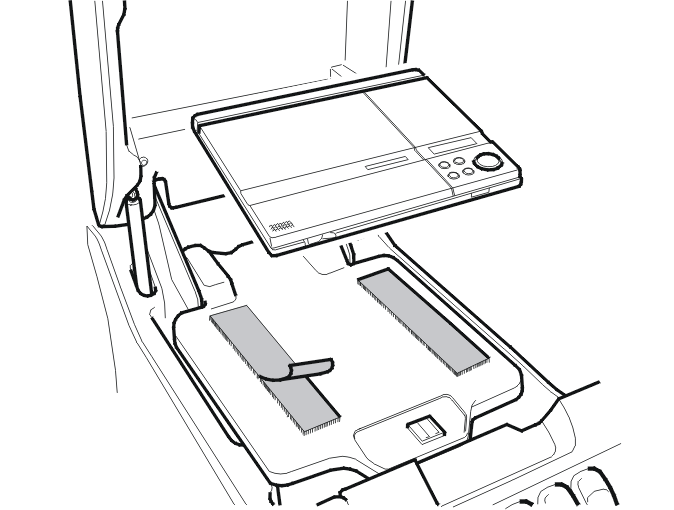

Fig 2: Identifying Velcro Strip

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press the long Velcro strip into place on the shelf. It must be positioned so the it is facing from front to rear of the car.

Pull off the backing and align the DVD player on the center of the shelf as shown.

Press into place.

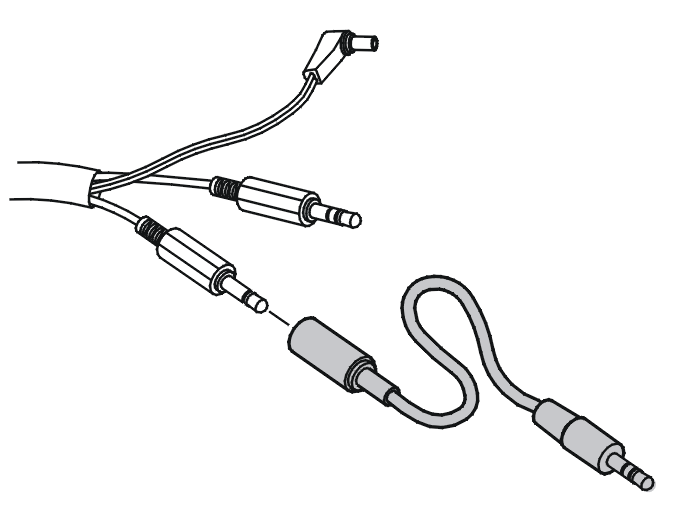

Fig 3: Identifying Loose Adapter Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the loose adapter connector on the connector with a black dash on the terminal pin.

Connect the connectors to the DVD player.

The adapter must be in the yellow connector.

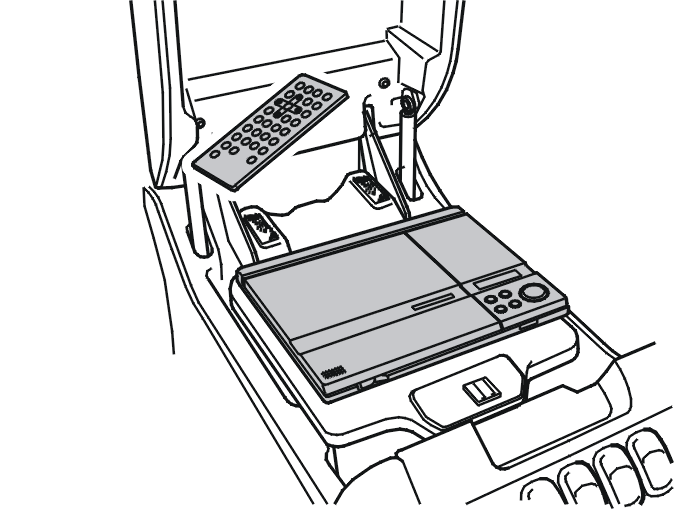

Fig 4: Identifying Remote Control And DVD Player

Courtesy of VOLVO CARS OF NORTH AMERICA.

There is a storage position for the new remote control behind the DVD player.

Secure the hard part of the Velcro pieces supplied. Pull the backing off the Velcro.

Align the remote control. Press the remote control into place.

Check the function of the DVD player and the remote control.

NOTE: The car stereo must be on and in TV mode. Switch on the DVD player by holding the On/Off button down for approximately 2 seconds. Press the same button again to start the DVD disc.
