Replacing the inner module: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

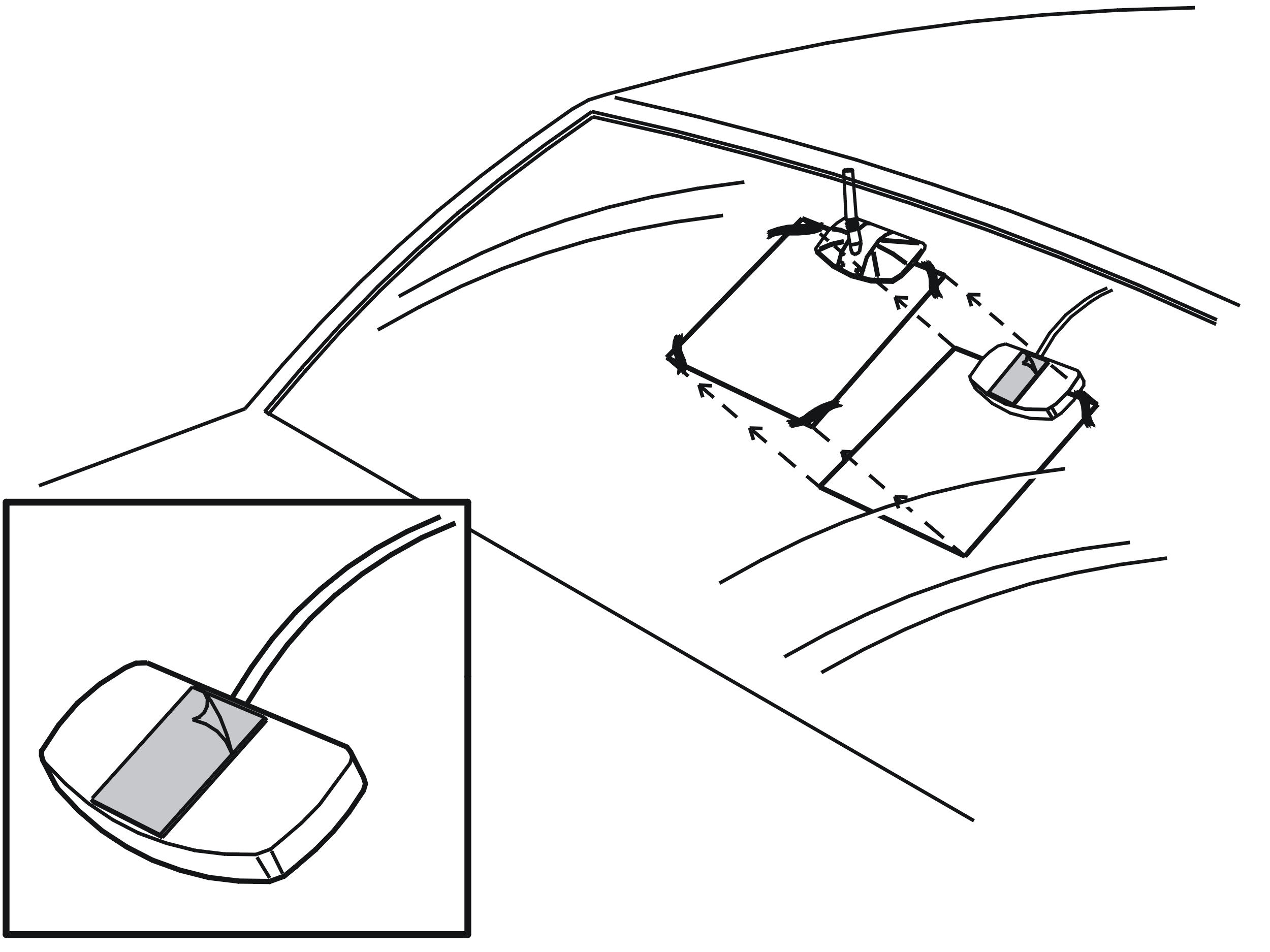

Fig 1: Identifying Tape

Courtesy of VOLVO CARS OF NORTH AMERICA.

WARNING: On S80 and V70 (2000-) cars with inflatable curtains, the wiring must not be routed above the side windows. This could jeopardize the function of the inflatable curtain in the event of a collision.

NOTE: When replacing or repositioning the antenna, see Installation Instructions 3-394-49.

Fig 2: Identifying Cable At C And D-Posts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the side cushion according to Replacing the side cushion
the rear seat cushion according to Cushion
the C and D post panels according to Panel, C-post, replacing .

Separate the connector on the floor.

Detach the cable at the C and D-posts.

Detach a corner of the inner module from the glass. Use weatherstrip tool 9814071 . Pull off the module.
