Installing the control module

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

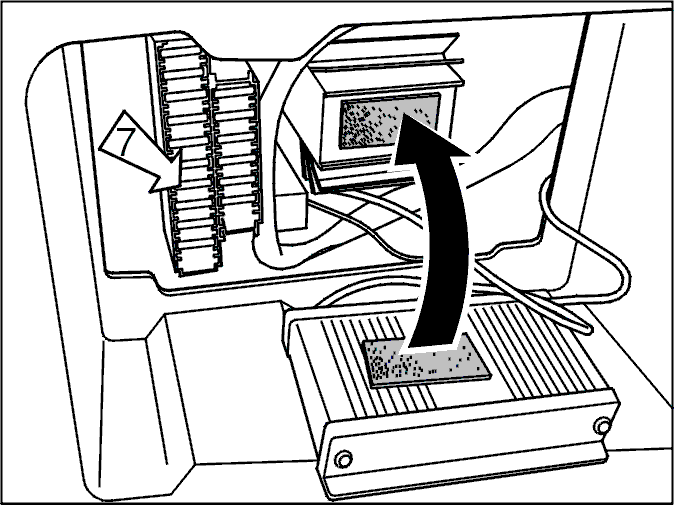

Fig 1: Identifying Control Module And Cable For Car Phone

Courtesy of VOLVO CARS OF NORTH AMERICA.

Measure the Velcro strip on the old control module.

Cut and stick the Velcro strip on the control module.

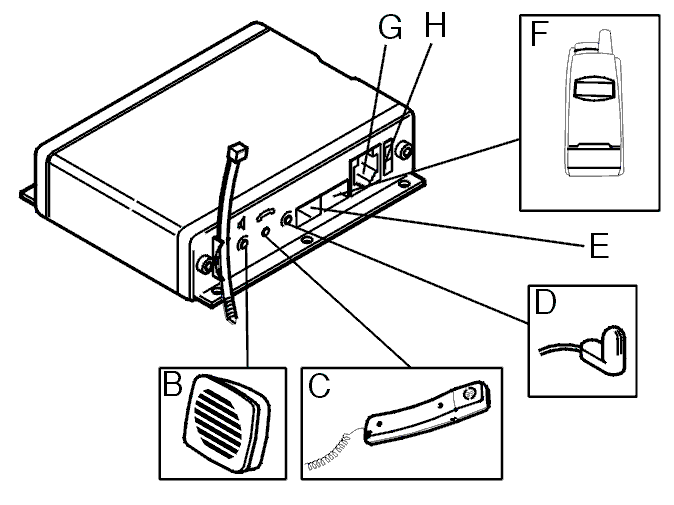

Fig 2: Identifying

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the connectors.

NOTE: The switches on the control module for the microphone and loudspeaker are easily mixed up (B and D). Check the terminals.

Install the control module.

Install:

the clamp for the wiring
fuse number 7 (3A)
the four screws for the cover
the carphone (if applicable).
